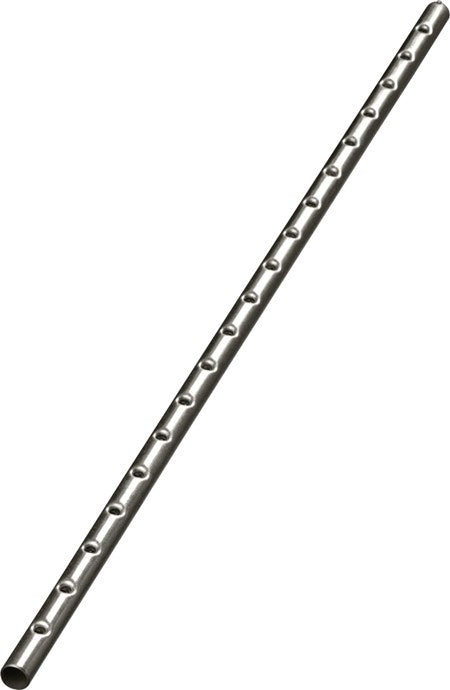

The Apollo 53541-172APO is a long sampling tube for Apollo duct smoke detector housings (53546-021 for conventional heads and 53546-022 for XP95/Discovery heads), for ventilation ducts 1500mm to 3000mm wide. The perforated tube spans the duct in the airflow so that air is drawn across the detector head and exhausted back into the duct, giving early warning of smoke in HVAC ductwork.
Key features
- For duct widths of 1500mm to 3000mm
- Spans the full width of the duct in the airflow, upstream of the exhaust tube
- Can be cut to slightly more than the duct width; close the end with the small red bung provided
- 10-year warranty
Technical specifications
- Part number: 53541-172APO
- Duct width: 1500 to 3000mm
- Compatible housings: Apollo duct smoke detector 53546-021 and 53546-022
- Duct airflow: uniform, 0.5 to 20m/s
- Pressure differential (sampling to exhaust tube): 0.025 to 3mbar
