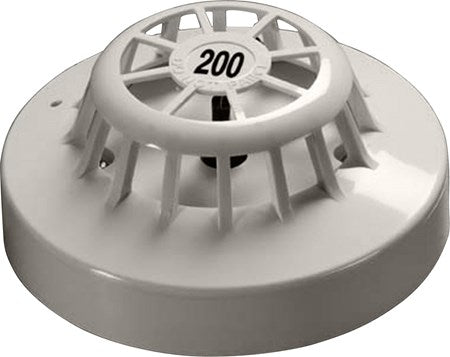

The Apollo 55000-145APO is a Series 65A conventional heat detector rated at 200°F, with a flashing LED. It monitors temperature using a dual thermistor network that gives a voltage output proportional to the external air temperature, and is part of Apollo's UL-listed Series 65A range.
Heat detectors suit applications where smoke detectors are unsuitable, such as environments that are dirty or smoky under normal conditions.
Key features
- 200°F heat detector
- Flashing LED
- Dual matched NTC thermistor sensing
- Ideal where smoke detectors are unsuitable (dirty or smoky environments)
- Wide operating voltage
- UL, FM and CSFM approved
Technical specifications
- Detection principle: two matched NTC thermistors
- Sampling: continuous
- Supply voltage: 9-33V DC
- Supervisory current: 40-50µA at 9V; 45-55µA at 24V (model dependent)
- Alarm current: 17mA at 9V; 52mA at 24V
- Installation temperature: min 32°F, max at least 20°F below rating
- Humidity: 0% to 95% RH (no condensation or icing)
- Spacing (smooth ceiling): 50ft; 25ft to wall or partition
- Dimensions: 100mm (3.93in) diameter x 1.65in height
- Weight: 80g (2.80oz)
- Housing: white flame-retardant polycarbonate; nickel plated stainless steel terminals
- Test method: magnet or hair dryer
- Approvals: UL, FM, CSFM
