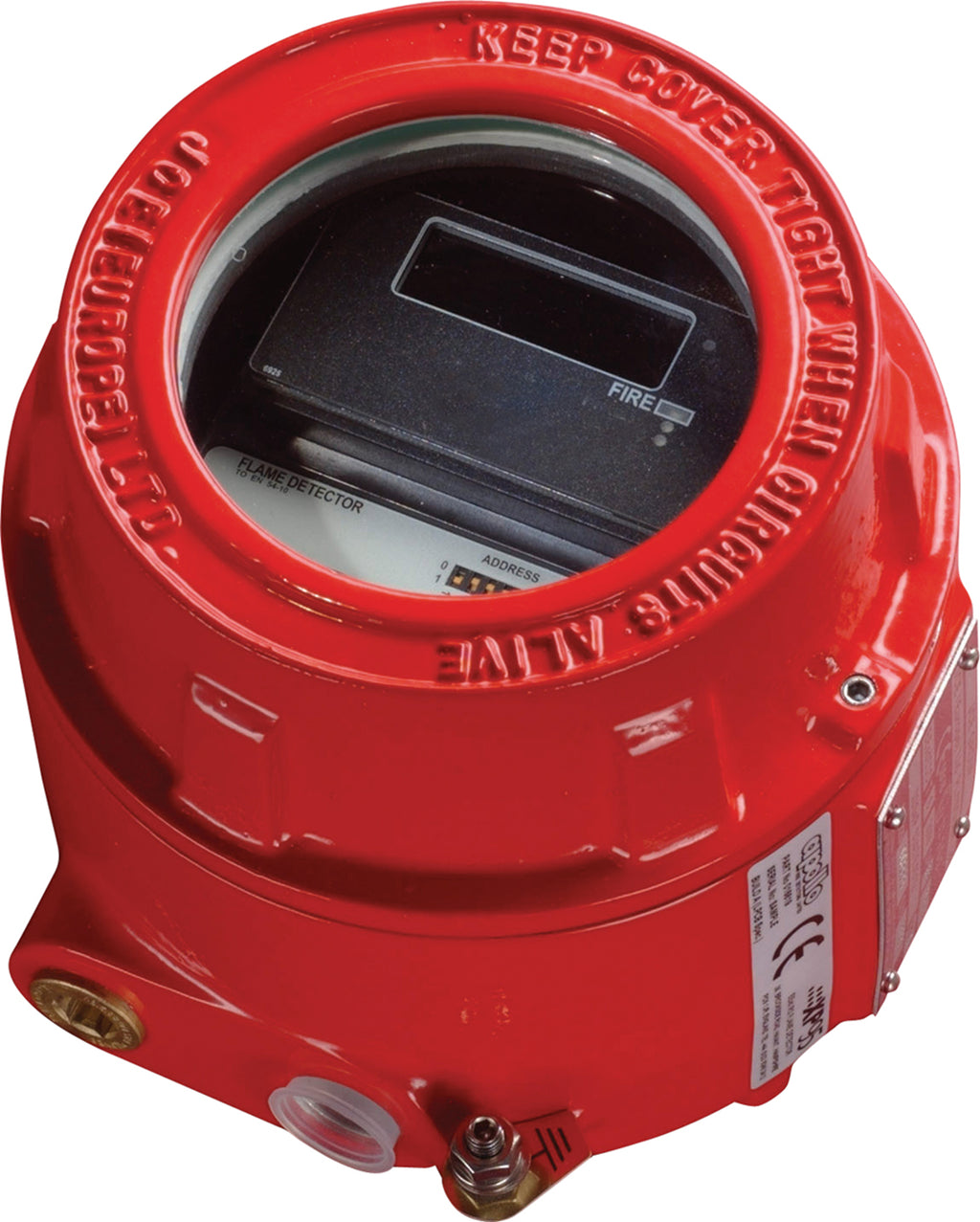

The Apollo 55000-295APO XP95 Exd Flame Detector (IR2) is a flameproof, addressable infra-red flame detector for hazardous areas in indoor applications. Two sensors respond to different IR wavelengths to tell real flames from spurious sources of radiation. It is XP95 native and Discovery compatible, BASEEFA approved and meets the ATEX Directive 2014/34/EU.
Key features
- ATEX certified II 2 G D; CENELEC/IEC certified EEx d IIC T4 for Zones 1, 21, 2 and 22
- Sensitive to flickering IR radiation, including flames invisible to the naked eye
- Detects through films of oil, dust, water and ice
- High optical interference immunity
- Remote optical self-test function
- 90° field of view and up to 40m coverage
Technical specifications
- Part number: 55000-295APO
- Protocol: XP95 native, Discovery compatible
- Supply voltage: 14 to 28V dc
- Quiescent current: 2.2mA; alarm current: 4.2mA
- Maximum power-up time: 4 seconds
- Range of view: 0.1m² n-heptane at 25m, 0.2m² at 35m, 0.4m² at 45m
- Field of view: 90° minimum cone
- Spectral response: 1.0 to 2.7µm
- Sensitivity (EN 54-10): high Class 1, low Class 3
- Operating temperature: -10°C to +55°C
- Storage temperature: -20°C to +65°C
- Humidity: 0% to 95% RH (no condensing or icing)
- IP rating: IP66
- Dimensions: 158mm (h) x 149mm (w) x 134mm (d)
- Weight: 2.3kg
- Housing: copper-free aluminium alloy, red
- Cable gland entries: 3 x 20mm
- Approvals: BASEEFA, CCS, CPR, LPCB, IECEx
