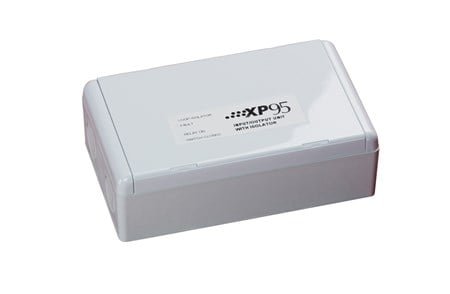

The Apollo 55000-847APO XP95 Input/Output Unit is a loop-powered addressable interface for Apollo XP95 fire detection systems. It gives a volt-free, double-pole changeover relay output to control plant or equipment, a monitored switch input and an opto-coupled input, and has a short-circuit isolator built in as standard. It is supplied with a backbox for surface mounting.
Key features
- Loop-powered; no separate supply needed
- Volt-free double-pole changeover (DPCO) relay output
- Single monitored switch input plus an unmonitored opto-coupled input
- Integral short-circuit isolator
- Address set with a 7-segment DIL switch
- LED indication, visible through the cover plate
Technical specifications
- Part number: 55000-847APO
- Protocol: XP95
- Wiring terminals: solid or stranded cable up to 2.5mm²
- Quiescent current (20kΩ EOL fitted, at 28V): 1mA
- Switch-on surge: 5mA for 200ms (LED enabled)
- Maximum current (any other condition, max 2 LEDs on): 3mA
- Mounting: surface, backbox supplied
- Environment: indoor use, or outdoors only inside a suitable weatherproof enclosure
