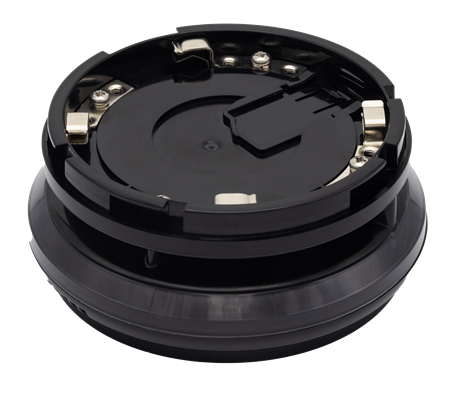

Apollo 58006-300APO 58006-300APO Discovery Base Sounder Black

The Apollo 58006-300APO is the black version of the Discovery Base Sounder: an addressable, loop-powered base sounder that fits directly to an XPERT 8 base. It works with Discovery and CoreProtocol compatible panels and can be used with an Apollo addressable detector fitted, or as a stand-alone sounder with a base cap (black cap 45681-296, sold separately).

Group, global and individual control, status reporting and tone and volume selection are all configured through the fire control panel (features are panel dependent).

Key features

• Simple installation onto an XPERT 8 base
• 15 tone pairs and 7 volume settings
• Software-defined group addressing, up to 16 group addresses
• Built-in isolator (when used with an XPERT 8 base)
• Unique acoustic self-test
• Set-up and testing at the control panel or at the device

Technical specifications

• Digital communication: Discovery and CoreProtocol compatible
• Supply voltage: 17-35V DC
• Quiescent current: 0.7mA
• Power-up surge current: 0.7mA
• Alarm current, sounder on: 6.85mA (volume 7)
• Maximum sound output at 90°: 95dB(A)
• Operating temperature: -20°C to +70°C
• Humidity: 0% to 95% RH (no condensation or icing)
• IP rating: IP21C (EN54-3); manufacturer declared IP34 with detector or cap fitted
• Standards: EN54-3, EN54-17
• Dimensions: 110mm diameter x 46mm deep
• Weight: 198g
• Colour: black
• Base: XPERT 8 base SA5000-20X (sold separately)
