Apollo FL5100-600APO Soteria Dimension Optical Smoke Detector
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 20 | 1 to 3 working days |
- Low profile design
- Utilises digital CoreProtocol communications
- Compatible with Discovery and XP95 systems*
- Integrated switchable isolator as standard
- 8-way DIL switch addressing
- Drift compensation
Frequently bought together
Product details

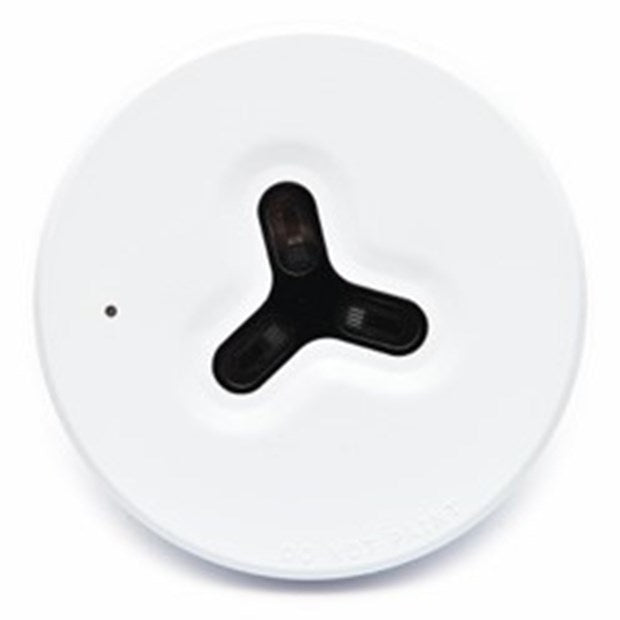

The Apollo FL5100-600APO Soteria Dimension is a low-profile, flush-mounted addressable optical smoke detector with no smoke chamber, designed for areas where a discreet detector is preferred.
The innovative design of the Soteria Dimension Optical Detector differs from standard fire detectors, having no chamber and being flush mounted.
- Low profile design
- Utilises digital CoreProtocol communications
- Compatible with Discovery and XP95 systems*
- Integrated switchable isolator as standard
- 8-way DIL switch addressing
- Drift compensation
- FasTest® for quicker testing
- Tricoloured LED status indicator
- Polycarbonate moulding for colour stability and strength
- Comprehensively tested to exceed EN 54-7 standard
- Locking mechanism (grub screw)
- *Note: Not all features may be available when Soteria devices are connected to an XP95 or Discovery fire control panel
Used for: Apollo analogue addressable fire alarm systems in offices, hotels, heritage buildings and other areas where a flush, low-profile detector is preferred.
Specification
| Product code | FL5100-600APO |
|---|---|
| Brand | Apollo |
| Range | Soteria Dimension |
| Type | Flush mounted optical smoke detector (no smoke chamber) |
| Protocol | CoreProtocol; compatible with Discovery and XP95 panels |
| Isolator | Integrated, switchable |
| Addressing | 8-way DIL switch |
| Standard | Tested to exceed EN 54-7 |
| Approvals | LPCB, VdS, CPR |
| Material | Polycarbonate |
| Weight | 148g |
| Colour | White |
Frequently asked questions
Is the Soteria Dimension compatible with XP95 and Discovery panels?
Yes, it is compatible with Discovery and XP95 systems, although not all features may be available when Soteria devices are connected to an XP95 or Discovery fire control panel.
Does the FL5100-600APO have an isolator?
Yes. An integrated switchable isolator is fitted as standard.
How is the detector addressed?
Addressing is set with an 8-way DIL switch.
