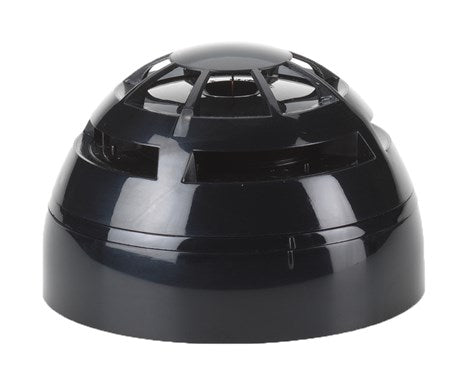

The Apollo RW1000-460APO is a black-bodied REACH Wireless analogue addressable heat detector. It can be configured as either rate-of-rise (A1R) or high temperature static (BS) classification to EN 54-5, set via the Loop-Interface during setup.
REACH devices communicate by radio with the REACH Loop-Interface, which translates wireless messages into wired Apollo protocol so each device is individually addressable by the fire panel. Devices are soft-addressed automatically when pairing, include anti-tamper detection, and are supplied with a standard wireless base and two CR123A batteries.
Key features
- Programmable for rate-of-rise (A1R) or static temperature (BS)
- Twin alarm, bi-colour LEDs for 360° visibility
- Bi-directional wireless communication
- Dual channel redundancy
- Ten-year battery life
- Black body
Technical specifications
- Detection principle: single NTC thermistor
- Classification: EN 54-5 A1R or BS (configurable)
- Digital communication: Apollo protocol via the REACH Loop-Interface (RW1700-030APO)
- Communication range to Loop-Interface: 100m (open space)
- Radio frequency channel pairs: 22
- Radiated power: 14dBm (25mW)
- Batteries: 2 x VARTA CR123A lithium 3V, 1250mAh typical (supplied)
- Battery life: 10 years in normal operation with good signal strength
- Operating temperature: -10°C to +55°C
- Humidity: max 95% RH (non-condensing)
- IP rating: IP40
- Dimensions: 110mm diameter x 70mm height
- Weight: 190g including base and batteries
- Colour: black
