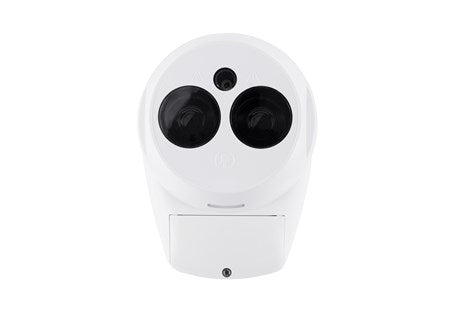

The Apollo SC7000-101APO Fireray One is a standalone conventional reflective beam detector designed for ease of installation. It auto-aligns in about one minute, can be installed by one person and needs no specialist tools or knowledge.
It covers up to 50m with a single reflector, extendable to 120m with the Reflective Long Range Kit. Fire and fault relays interface with a conventional fire panel, and motorised building movement compensation and automatic gain control keep it aligned and compensate for dust build-up.
Key features
- Single standalone detector
- One-minute auto alignment
- Single person installation; no specialist tools required
- False alarm resistant with light cancellation technology
- Motorised building movement compensation
- User-settable alarm and fault delays
- Fire and fault relays
Technical specifications
- Supply voltage: 14-36V DC
- Operating current: 5mA (all operational modes); 33mA (fast alignment mode)
- Response thresholds: 25%, 35% (default), 55% or 85%
- Detection range: 0-50m; 0-120m with Reflective Long Range Kit
- Optical wavelength: 850nm near infrared
- Delays: 10 seconds for momentary partial obstruction (alarm) or obstruction (fault)
- Operating temperature: -20°C to +55°C
- Storage temperature: -40°C to +85°C
- Humidity: 0% to 93% RH (no condensing or icing)
- IP rating: IP55
- Detector dimensions: 130mm W x 181mm H x 134mm D
- Reflector (up to 50m): 100mm x 100mm x 9mm
- Weight: detector 0.7kg; reflector 0.1kg
- Housing: white polycarbonate
