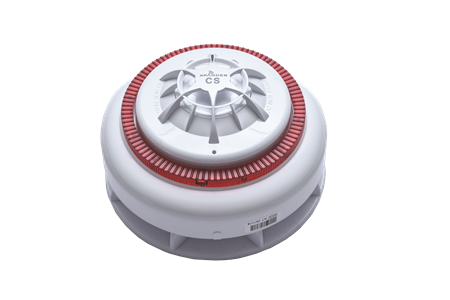

The Apollo XPA-CB-14022-APO is an XPander wireless combined unit: an XPander heat detector (class CS, static) fitted to a sounder visual indicator (VID) base with red flash, giving detection plus audible and visual alarm from one point with no cabling to the loop.
XPander is Apollo's wireless range: devices communicate with an XPander interface wired to an XP95 or Discovery loop, using a bi-directional monitored radio platform at 868MHz, and each device is recognised by the control panel like any wired loop device. It suits heritage and architecturally sensitive buildings, rapid retrofits and temporary systems where cabling is impractical.
Key features
- XPander heat detector (class CS, static)
- EN54-5 CS heat detection
- Integrated sounder and red visual indicator
- Wireless: bi-directional monitored radio platform
- Sounder self-test
- Powered by AA and C alkaline battery packs
Technical specifications
- Heat detector class: CS (static)
- Heat sensing: thermistor, sampled every 2 seconds
- Detector supply: regulated 3V from radio base
- Alarm indicator: integral, 360° visibility
- Detector dimensions: 100mm diameter x 30mm height, 80g
- Operating temperature: -10°C to +50°C
- Humidity: 0% to 95% RH (no condensation)
- Material: white polycarbonate
- Visual indicator: red
- Sounder batteries: one pack of 3 x AA and one pack of 3 x C alkaline, typical life 3-5 years
- Radio frequency: 868MHz
- Designed to IP23D
- Standards: EN54-3, EN54-25 plus EN54-5
