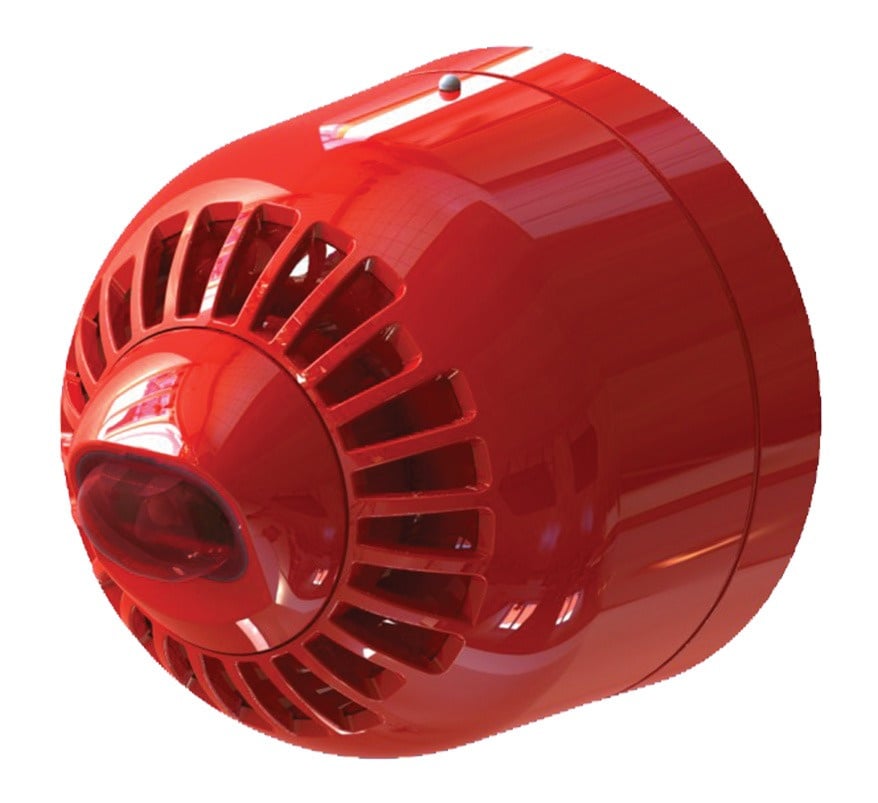

Aritech 2000 Series Addressable Multi-Tone Wall Sounder/VAD (Red Body, Red Flash, Shallow Base) (ASW2366)

The Aritech ASW2366 is a red-bodied, wall-mounted addressable sounder and visual alarm device (VAD) with a red flash and shallow base, for fire alarm systems using the Aritech 2000 series protocol. It is loop powered and certified to EN 54-3 and EN 54-23.

Key features

• Loop powered, no external supply needed
• 32 selectable tones and up to 3 pre-set tones for multi-stage evacuation
• High/low volume settings
• Red VAD with selectable 0.5 Hz or 1 Hz flash rate
• Automatic synchronisation of sounders and VADs
• Cabling to the base, with a separate earth terminal
• CPR certified to EN 54-3 and EN 54-23

Technical specifications

• Compatibility: Aritech 2000 series systems
• Operating voltage: 17 to 32 V DC
• Current consumption (at 24 V DC): 310 µA quiescent, 5.1 mA sounder on, 20 mA at 0.5 Hz / 40 mA at 1 Hz beacon on
• Sound output: 97 ±3 dB(A) at 1 m (tone and voltage dependent)
• Frequency: 400 to 2850 Hz (tone dependent)
• VAD rating: W-3-7.49; floor coverage 56 m²
• Mounting: wall, up to 3 m, shallow base
• Cable size: 0.28 to 2.5 mm²
• Dimensions: 100 mm diameter x 81 mm
• Weight: 298 g
• Operating temperature: -10 to +55°C
• IP rating: IP21C
