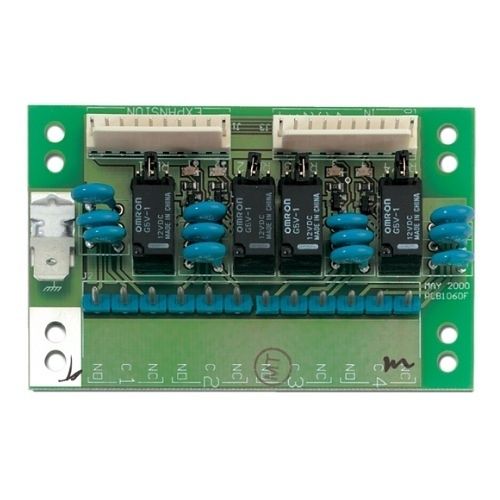

The 4-way relay card provides four single pole double throw relays with connection terminals to the common (C), normally open (NO), and normally closed (NC) contacts. The relay contacts are rated at 1 A at 0 to 30 VDC; reducing to 300 mA at 48 VDC. If fitted to a DGP, two relay modules can be connected together in daisy-chain fashion to provide up to eight relays on ATS120xE series. When fitted to the control panel or four to eight door/lift expander, only one relay module is allowed. An LED is provided for every relay to indicate activation.
Main Features
Expand panel or expander with four SPDT (NO-C-NC) relay outputs
Plug-in using flat-cable (included)
Compatible with Axon and Advisor Advanced panels
Expander type: Output expander
Connection type: Plug-in
Max. distance from panel: Located in Panel or DGP/Expander housing
