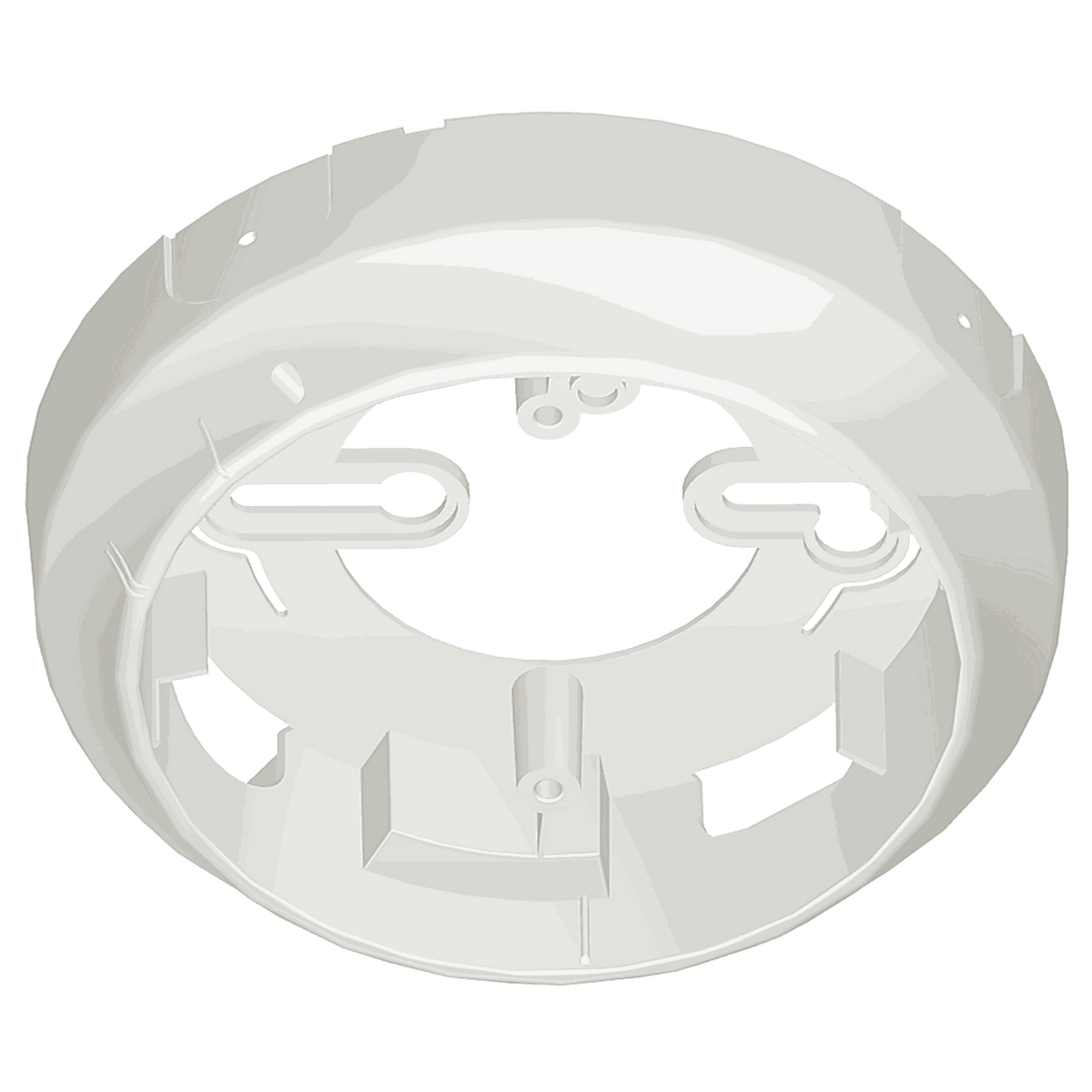

Kidde KE-DBA-AUXW Intelligent Addressable Deep Base – White

The KE-DBA-AUXW is a white surface-mount deep base accessory, part of the Kidde Commercial Excellence range of intelligent addressable devices. It lets standard electrical conduit run directly into the base, leaving no exposed cabling.

A standard Excellence series detector base fits snugly inside, so all of the base features remain available, including the address tag positions, detector locking and orientation features.

Key features

• Large rear cable entry with ample space for cables
• Four side conduit entry points spaced at 90° for entry and exit in any direction
• Breakouts and drill locations for either conduit installation method
• Keyhole fixings with stress relief for mounting on uneven surfaces
• First-fix screw option reduces installation time
• Supports standard Excellence series bases without loss of features

Technical specifications

• Compatibility: Kidde Commercial Excellence series bases
• Cable entries: 5 (1 rear, 4 x 25 mm diameter conduit)
• Dimensions: 130 x 48 mm (diameter x depth)
• Weight: 165 g
• Material: moulded ABS; colour white (RAL 9016)
• Operating temperature: -30 to +85°C
• Humidity: 20 to 95% non-condensing; indoor use
• Compliance: CE, REACH, RoHS 3, WEEE
