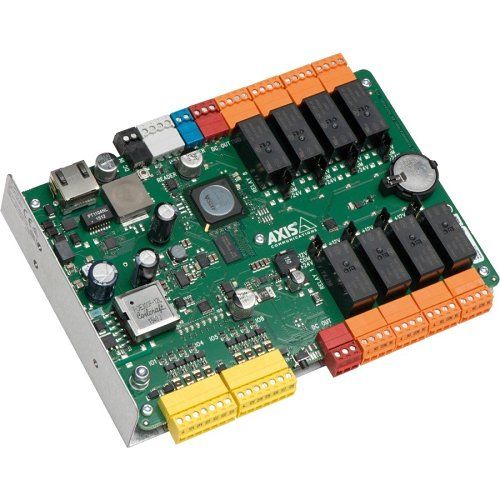

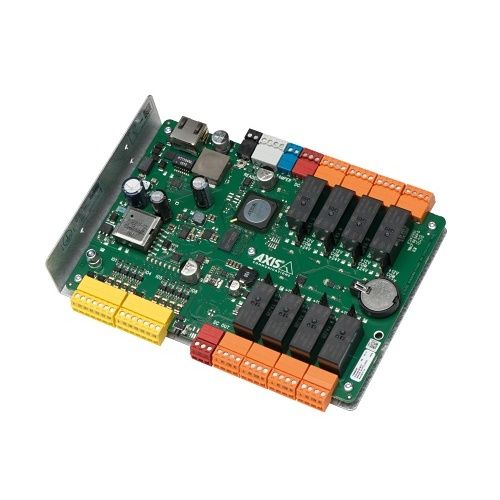

With its eight form C relays, A9188-VE Network I/O Relay Module is particularly useful for integrating AXIS A1001 Network Door Controller with elevator systems for floor-access management.In addition, it can be used to extend the functionality of any Axis product, particularly when numerous I/Os or relays are needed. The module reacts on inputs, such as signals from PIR motion detectors or switches, to trigger actions. A9188-VE supports VAPIX® and AXIS Camera Application Platform (ACAP) and can also be used with AXIS Camera Station or third-party software.
Main Features
8 I/Os with supervised inputs and configurable levels
8 form C relays
12 and 24V DC output
PoE+, PoE or 12 and 24 V DC input
Axis open protocols - VAPIX and ACAP
Specifications
Application/Usage
Door Control
Compatibility
Axis Network Door Controllers: A1001 A1601
Depth
120.0mm
Environmental Certification
UL
Environmentally Friendly
Yes
Height
43.0mm
Limited Warranty
3-Year
Minimum Operating Voltage
8V
NDAA Compliant
Yes
Package Contents
A9188 Network I/O Relay Module
Connector kit
Jumper kit
TORX KeyTR20
Installation guide
Product Line
A
Product Series
A91
Product Type
I/O relay modules
TAA Compliant
Yes
Width
186.0mm
Maximum Operating Temperature
55°C
Additional Information
DC Input Voltage: 8-28V Alarm Inputs/Outputs: 8 Digital I/O: Yes Relays: 8 Power Over Ethernet: Yes PoE Class: 4 Operating Temperature: -30 to 55°C Country of origin: Poland. Country of origin is subject to change.
