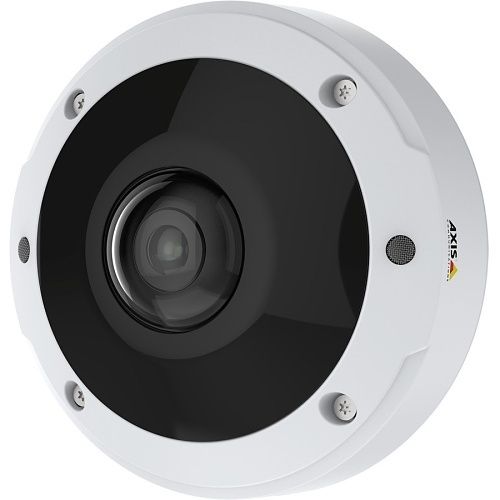

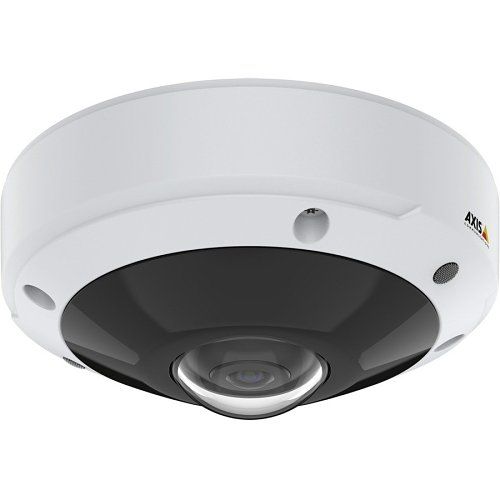

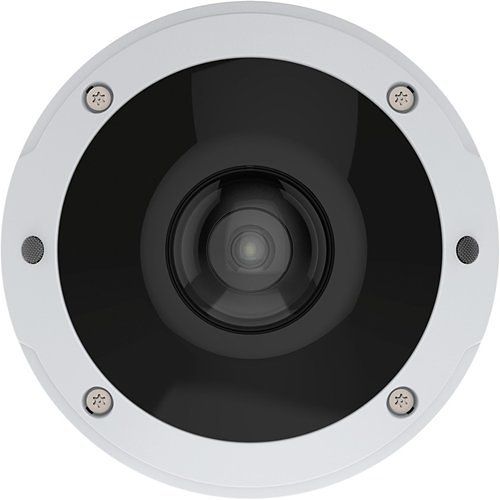

AXIS M3077-PLVE M30 Series, WDR IP66 6MP 1.56mm Fixed Lens IP Dome Camera, White
SKU: 02018-001Brand: Axis Communications
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 4 | 2 to 3 working days |
AXIS M3077-PLVE M30 Series, WDR IP66 6MP 1.56mm Fixed Lens IP Dome Camera, White
£886.05
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Complete 180° and 360° overview
- Lightfinder, Forensic WDR, and OptimizedIR
- Digital PTZ and dewarped views
- Built-in microphones
- Enhanced security features
Frequently bought together
Axis Communications
AXIS M3085-V M30 Series, 2MP IP Dome Camera, 3.1mm Fixed Lens, IP42, White
Sale price£351.65
In stock
Axis Communications
AXIS M3086-V M30 Series, 4MP Zipstream Vandal Resistant IP Mini Dome Camera, 2.4mm Fixed Lens, IP42
Sale price£426.50
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS M3086-V Mic 4MP Mini-Dome Camera with Deep Learning, Indoor
Sale price£426.50
In stock
Axis Communications
Axis M3116-LVE Conduit Back Box for 1/2" Conduits and M20 Pipes, Compatible with P14/Q19 Cameras, (Replaces T94F01P)
Sale price£52.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality and a complete 180° or 360° overview, indoors or out, around the clock. It features two built-in microphones allowing for audio surveillance and detection. This compact mini dome offers dewarped views such as panorama, quad, corner, and corridor views directly from the camera. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. And, Axis OptimizedIR for surveillance in pitch darkness.
Main Features
- Complete 180° and 360° overview
- Lightfinder, Forensic WDR, and OptimizedIR
- Digital PTZ and dewarped views
- Built-in microphones
- Enhanced security features
Specifications
| Built-in Microphone | Yes |
|---|---|
| Connectivity Technology | Wired |
| Depth | 14.9cm |
| Diameter | 149.0mm |
| Durability | Vandal Resistant |
| Effective Camera Resolution | 6MP |
| Environmental Certification | IEC 60068-2-1; IEC 60068-2-14; IEC 60068-2-2; IEC 60068-2-27; IEC 60068-2-6; IEC 60068-2-78; IEC 60721-3-5 Class 5M3; IEC/EN 60529 IP66; IEC/EN 62262 IK10; NEMA 250 Type 4X; NEMA TS 2 (2.2.7-2.2.9) |
| Features | Audio Detection; Auto Gain Control; Automatic White Balance; Built-in IR LED; Built-in Microphone; Day/Night; Motion Detection; Multi-view Stream; Noise Reduction; Privacy Masking; PTZ; Removable IR Cut-off Filter; SD Card Local Storage; Tampering Alarm; Video Management System; Wide Dynamic Range |
| Field of View | Horizontal; Vertical |
| Focal Length | 1.56mm |
| Form Factor | Dome |
| Height | 66.0mm |
| Image Sensor Type | CMOS |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66 |
| Lens Type | Fixed |
| Limited Warranty | 5-Year |
| Maximum Aperture | F/2 |
| Maximum Focal Length | 1.6mm |
| Maximum Resolution | 1280 x 720 |
| Mount Type | Ceiling Mount; Conduit Box Mount; Corner Mount; Parapet Mount; Pendant Mount; Pole Mount; Wall Mount |
| NDAA Compliant | Yes |
| Network (RJ-45) | Yes |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Package Contents |
|
| Product Line | M |
| Product Series | M30 |
| Product Type | Fixed dome cameras |
| Recording Formats | H.264; H.265 / HEVC |
| Storage Type | SD Card |
| TAA Compliant | No |
| Video Resolution | 1280 x 720 |
| Weight | 700.00g |
| Wide Dynamic Range | Yes |
| Width | 14.9cm |
| Maximum Operating Temperature | 50°C |
| Aperture | f/2.0 |
| CE Marking | Yes |
| Colour | White |
| Country of Origin | TH |
| Impact Protection Rating | IK08 |
| Lens Included | Yes |
| Longest Shutter Speed | 1 Second |
| Manufacturer | Axis Communications |
| Maximum Frame Rate | 60fps |
| Maximum Power Consumption | 12W |
| Memory Card Supported | Yes |
| Minimum Focal Length | 1.6mm |
| Minimum Illumination | 0.00lux |
| Minimum Operating Temperature | -40°C |
| Night Vision Distance | 20.00m |
| Operating Humidity | 100% |
| Power over Ethernet (PoE) | Yes |
| Remote Management | Yes |
| RoHS Compliant | Compliant |
| Shortest Shutter Speed | 1/16000 Second |
| Supported Network Protocols | IPv6 |
| Video Formats | H.264 / AVC; H.265 / HEVC; MJPEG; MPEG-4 Visual |
| WEEE Compliant | Compliant |
