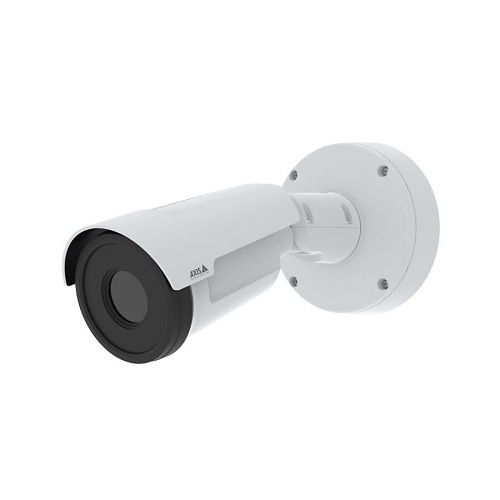

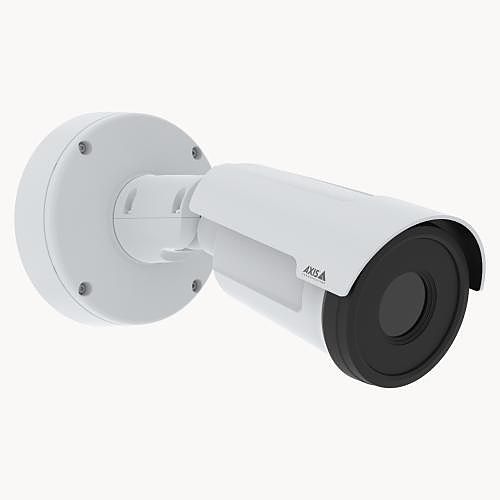

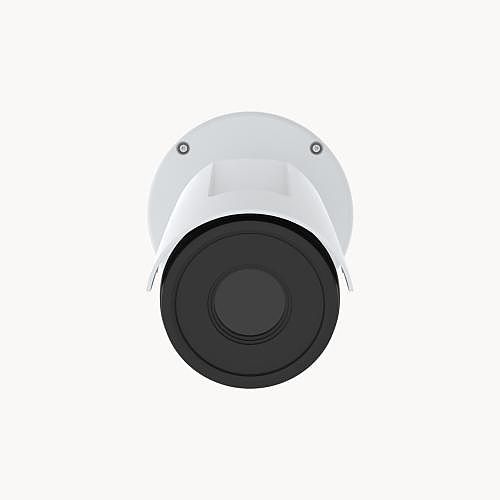

Name: AXIS Q1971-E Outdoor Thermal Camera, 19mm Fixed Lens, 30 fps, IK10, White
Brand: Axis Communications
SKU: 02949-001
Price: 3365.65 GBP
Availability: InStock

AXIS Q1971-E Outdoor Thermal Camera, 19mm Fixed Lens, 30 fps, IK10, White

Roll over image to zoom in Click on image to zoom

Thermal network camera, 19mm, 30fps, 384x288

Main Features

Reliable thermal detection 24/7
Five lens alternatives
Support for AXIS Perimeter Defender
Built-In cybersecurity with Axis Edge Vault
Compact, robust, and halogen-free

Specifications

Connectivity Technology	Wired
Durability	Impact Resistant
Environmental Certification	IEC 60068-2-1; IEC 60068-2-14; IEC 60068-2-2; IEC 60068-2-27; IEC 60068-2-6; IEC 60068-2-78; IEC/EN 60529 IP66; IEC/EN 60529 IP67; IEC/EN 62262 IK10; ISO 21207 (Method B); MIL-STD-810H (Method 501.7); MIL-STD-810H (Method 502.7); MIL-STD-810H (Method 505.7); MIL-STD-810H (Method 506.6); MIL-STD-810H (Method 507.6); MIL-STD-810H (Method 509.7); MIL-STD-810H (Method 510.7); MIL-STD-810H (Method 514.8); MIL-STD-810H (Method 516.8); MIL-STD-810H (Method 521.4); NEMA 250 Type 4X; NEMA TS 2 (2.2.7-2.2.9)
Field of View	Horizontal; Vertical
Focal Length	19mm
Form Factor	Bullet
Image Sensor Type	Uncooled Microbolometer
Indoor/Outdoor	Outdoor
Ingress Protection Rating	IP66; IP67
Input Voltage	12V DC; 28V DC
Lens Type	Fixed
Limited Warranty	Not provided
Maximum Aperture	f/1.24
Network (RJ-45)	Yes
Package Contents	Cable gaskets Camera Connector guard Drill template Installation guide Owner authentication key RESISTORX L-key Terminal block connector TORX L-keys
Product Series	Q1971-E
Product Type	Thermal cameras
Storage Type	SD Card
TAA Compliant	Yes
Maximum Operating Temperature	60°C
Aperture	f/1.23
CE Marking	Yes
Colour	White
Country of Origin	PL
Image Sensor Size	384 x 288
Impact Protection Rating	IK10
Lens Included	Yes
Manufacturer	Axis Communications
Maximum Frame Rate	30fps
Maximum Power Consumption	13W
Memory Card Supported	Yes
Minimum Operating Temperature	-40°C
Number of Sensors	1
Operating Humidity	100%
Power over Ethernet (PoE)	Yes
RoHS Compliant	Out of Scope
Supported Network Protocols	IPv6
Video Formats	H.264 / AVC
WEEE Compliant	Out of Scope
