| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 2 | 2 to 3 working days |
- IEEE 802.3af
- Reduced installation costs
- Plug-and-play
Frequently bought together
Product details
Easier and faster installations
Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling.
No need for power outlets
With the use of Axis PoE products, Axis network cameras and video encoders can receive both data and power over a single Ethernet cable. Network video products can thus be installed in areas where traditional power cabling and outlets are unavailable or difficult to install.
Axis PoE midspans and PoE splitters
Axis PoE midspans provide power (max. 15.4 W per port) over Ethernet cables to network video products with built-in Power over Ethernet support.
For network video products without built-in PoE support, a PoE splitter must be used to separate power and data coming over the network cable.
Axis PoE midspans and PoE splitters are IEEE 802.3af compliant, which ensures compatibility with all Axis products that have built-in support for Power over Ethernet.
- IEEE 802.3af
- Reduced installation costs
- Plug-and-play
Specifications
| Compatibility |
Axis Network Cameras:
|
|---|---|
| Depth | 140.00mm |
| Environmental Certification | DTE Power via Media Dependent Interface (MDI); IEEE 802.3 standard; IEEE 802.3af |
| Environmentally Friendly | Yes |
| Form Factor | Shelf Mount; Wall Mount |
| Height | 33.00mm |
| Input Ports | 10/100/1000Base-T |
| Input Voltage | 110V AC; 220V AC |
| Limited Warranty | 3-Year |
| Maximum Frequency | 63.00Hz |
| Maximum Output Power | 15.00W |
| Minimum Frequency | 47Hz |
| Mount Type | Shelf Mount; Wall Mount |
| Output Ports | 1 x 10/100/1000Base-T |
| Product Line | T |
| Product Series | T81 |
| Product Type | PoE Extender |
| TAA Compliant | No |
| Width | 53.00mm |
| Manufacturer | Axis Communications |
| Maximum Input Current | 500.00mA |
| Maximum Output Voltage | 48V |
| Operating Relative Humidity (H-H) | 10-90% |
| Operating Temperature (T-T) | 0-40°C |
| Power over Ethernet (PoE) | Yes |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet

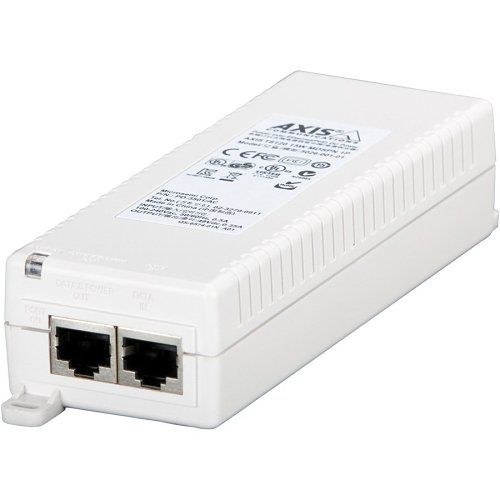

AXIS T8120 Midspan 1-Port, 15W Product datasheet · 5026-203 · PDF Open datasheet
