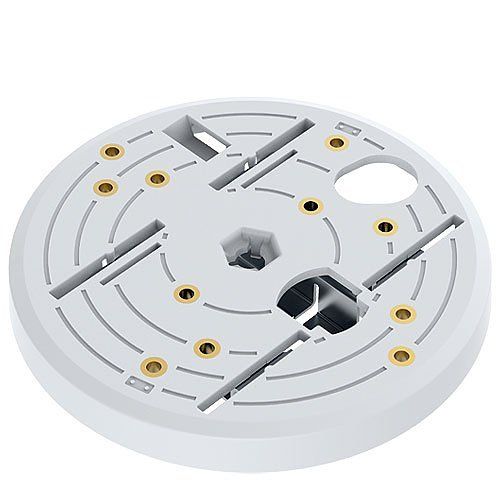

AXIS T91A23 Tile Grid Ceiling Mount, Flexible Mount for Drop-Ceiling Tile Grids, 4-Pack
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- Quick and instant grip to the tile grid
- No drilling or damages to ceiling tiles
- Easily reposition the camera when needed
- Compatible with wide range of drop-ceiling systems
Frequently bought together
Product details

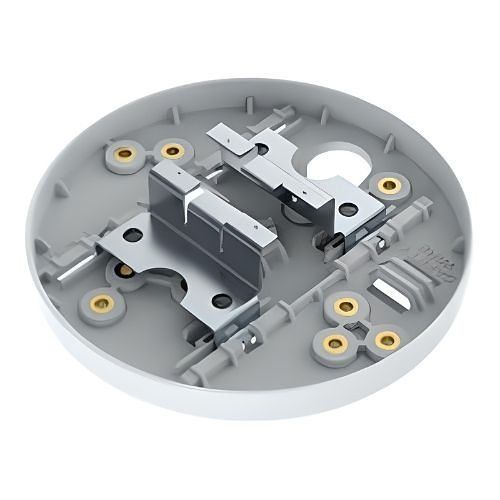

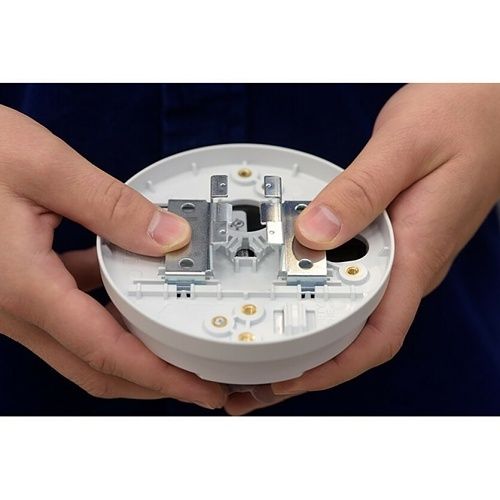

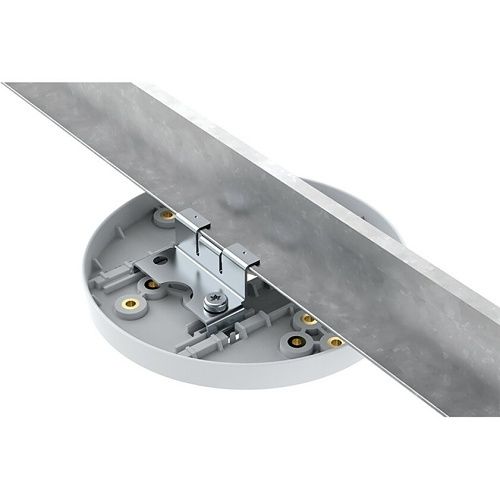

The unique AXIS T91A23 Tile Grid Ceiling Mount allows you to mount AXIS cameras along existing ceiling tile grids in your environment. Reduce installation time and money with no need for drilling or damaging the tile, and minimum alteration is required when routing the Ethernet cable through the ceiling. The mount instantly grips the tile grid without needing any tools.

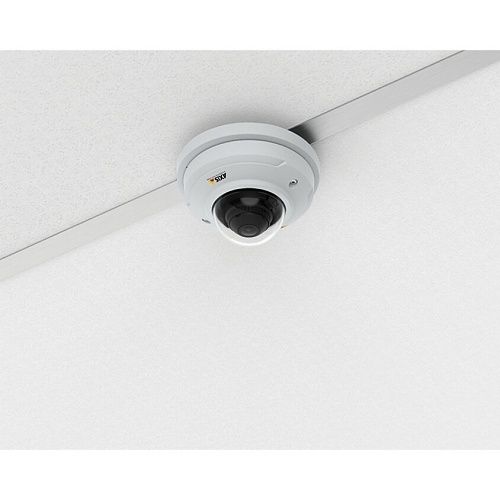

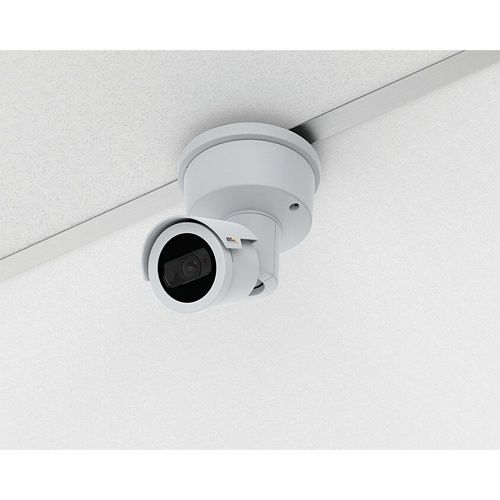

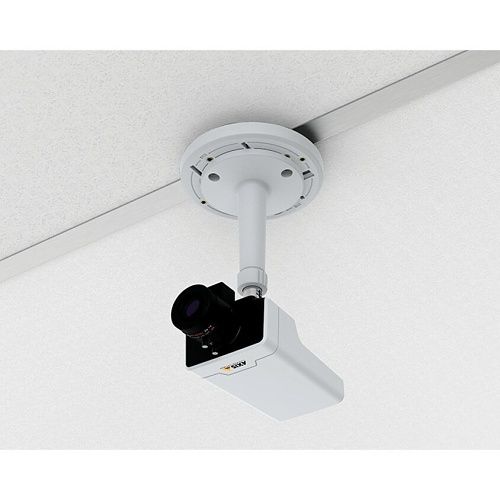

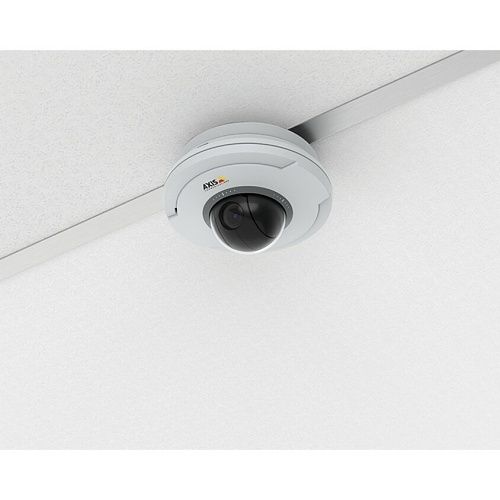

AXIS T91A23 is directly compatible with a wide range of AXIS cameras and camera stands. It is cleverly designed to be compatible with the most common ceiling grid rail types, and it is suitable beneath square edge and tegular edge tiles. Whenever needed, the camera can be quickly repositioned along the grid rails to cover a new field of view.
Elegant and discreet to match your environment

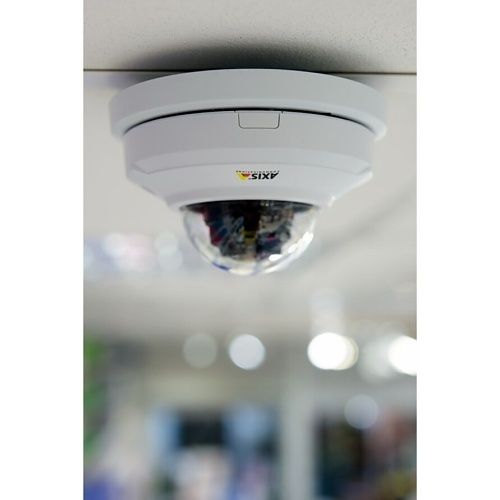

AXIS T91A23 is designed to be compatible with a wide range of AXIS cameras and camera stands. The mount easily blends in with the drop-ceiling tile grid system, making it ideal for retail, banking, commercial and education environments.

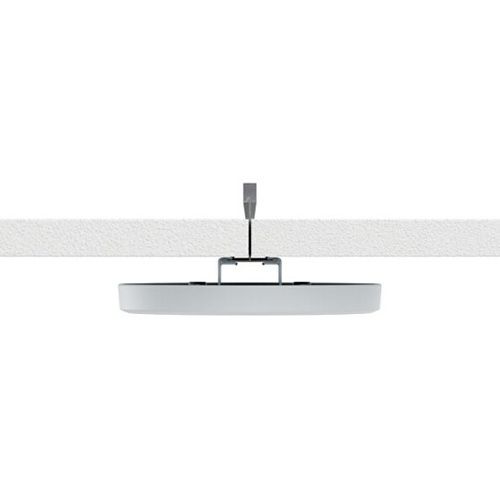

Drop-ceiling rail types
AXIS T91A23 Tile Grid Ceiling Mount is compatible with the most common drop-ceiling grid rail types and ceiling tile types:
15 mm (0.6 in)
24 mm (0-9 in) (most common)
35 mm (1.4 in)
- Quick and instant grip to the tile grid
- No drilling or damages to ceiling tiles
- Easily reposition the camera when needed
- Compatible with wide range of drop-ceiling systems
Specifications
| Compatibility | AXIS Fixed Cameras:M1124; M1125; M1145; M1145-L; M2025-LE; M2026-LE Mk II; M3025-VE; M3026-VE; M3027-PVE; M3037-PVE; M3044-V; M3044-WV; M3045-V; M3045-WV; M3046-V; M3047-P; M3048-P; M3057-PLVE; M3058-PLVE; M3104-L; M3104-LVE; M3105-L; M3105-LVE; M3106-L Mk II; M3106-LVE Mk II; M5055; M5065AXISThermal Cameras:Q1941-E PT Mount; P1364; P1365 Mk II; P1367; P1435-LE; P1445-LE; P1445-LE-3; P1447-LE; P1448-LE; P3224-LV Mk II; P3224-V Mk II; P3225-LV Mk II; P3225-LVE Mk II; P3225-V Mk II; P3225-VE Mk II; P3227-LV; P3227-LVE; P3228-LV; P3228-LVE; P3235-LV; P3235-LVE; P3367-V; P3374-LV; P3375-LV; P3375-V; Q1615 Mk II; Q1645; Q1647; Q1765-LE PT Mount AXIS Fixed Dome Cameras:M3024-LVE; Q1942-E PT Mount; Q2901-E PT Mount; Q3515-LV; Q3515-LVE; Q3517-LV; Q3517-LVE; Q3518-LVEAXIS PTZ Cameras:M5054 |
|---|---|
| Device Supported | Network Camera |
| Limited Warranty | 3-Year |
| Package Type | Box |
| Packaged Quantity | 4 |
| Product Line | T |
| Product Series | 91 |
| Product Type | Mounts |
| CE Marking | Yes |
| Colour | White |
| Country of Origin | CN |
| Manufacturer | Axis Communications |
| RoHS Compliant | Compliant |
| WEEE Compliant | Out of Scope |
