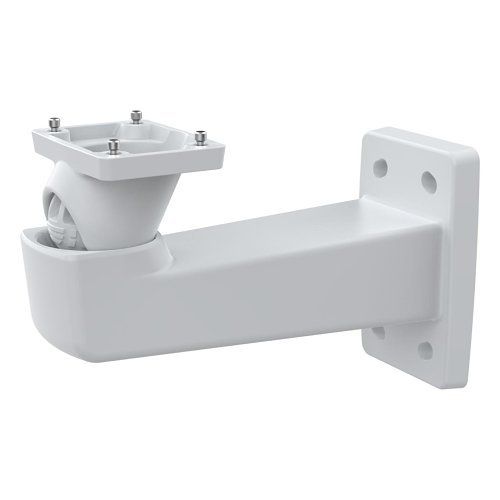

AXIS TQ1003-E Rotatable Wall Mount for Outdoor Fixed Box Cameras and Housings
SKU: 02567-001Brand: Axis Communications
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
AXIS TQ1003-E Rotatable Wall Mount for Outdoor Fixed Box Cameras and Housings
£63.10
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Highly robust wall mount
- Flexible cable routing
- IK10 Rated
- Aluminium
- Rotatable
Frequently bought together
Axis Communications
AXIS TQ1601-E Conduit Back Box for IP Camera, Wall Mount
Sale price£63.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS TQ1604-E Conduit Back Box, Grey
Sale price£63.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS TQ1808-VE Surveillance Cabinet
Sale price£415.80
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Axis Communications
AXIS TQ3104 Pendant Kit Accessory
Sale price£159.25
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
Highly robust and rotatable wall mount, made of aluminum, and compatible with all Axis outdoor fixed box cameras and housings. Corrosion tested according to NEMA 4X, UL listed and IK10 rated. When used together with AXIS TQ1601-E Conduit Back Box, the Ethernet cable can be routed through cable protection pipes/conduits along the wall (from the left or right).
Main Features
- Highly robust wall mount
- Flexible cable routing
- IK10 Rated
- Aluminium
- Rotatable
Specifications
| Application/Usage | Cable Management; Indoor; Outdoor; Wall |
|---|---|
| Compatibility | Axis Cameras M1135-E MK II M1137-E MK II P1375-E P1377-LE P1378-LE Q1615-LE Mk III Q1656-BE Q1656-BLE Q1656-DLE Q1656-LE |
| Depth | 21.1cm |
| Device Supported | Back Box; Camera; Housing |
| Environmental Certification | IEC/EN 60529 IP66; IEC/EN 60529 IP67; IEC/EN 62262 IK10; NEMA 250 Type 4X |
| Features | ±5° Rotation; 10° Tilt; Cable Management; Flexible; IK10; Pan Adjustment; Robust; Rotate |
| Finishing | Powder Coated |
| Height | 14.0cm |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP66; IP67 |
| Limited Warranty | Not provided |
| Maximum Load Capacity | 7kg |
| Mount Profile | Fixed |
| Mount Type | Wall Mount |
| Packaged Quantity | 1 |
| Product Line | T |
| Product Series | TQ10 |
| Product Type | Mounts |
| Weight | 695.00g |
| Width | 7.9cm |
| Country of Origin | CN |
| Manufacturer | Axis Communications |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
AXIS TQ1003-E Rotatable Wall Mount for Outdoor Fixed Box Cameras and Housings Product datasheet · 02567-001 · PDF Open datasheet
