Name: Belden 1505A.00152 SDI Cable Coaxial, RG-59, 20 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR, 152m, Black
Brand: Belden
SKU: 1505A.00152
Price: 403.75 GBP
Availability: InStock

Belden 1505A.00152 SDI Cable Coaxial, RG-59, 20 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR, 152m, Black

Roll over image to zoom in Click on image to zoom

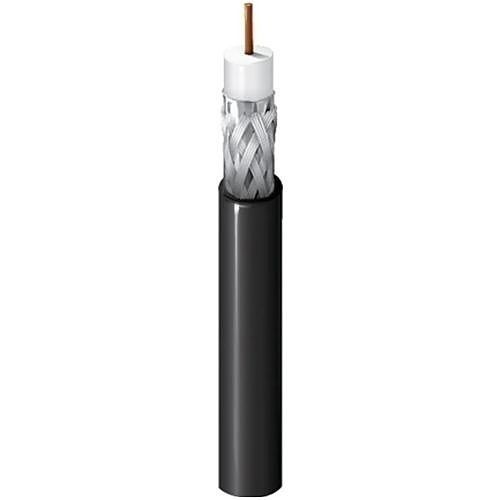

75 Ohms SDI Coax, RG-59, 20AWG solid bare copper conductor, PE insulation, foil + 95% tinned copper braid shield, PVC jacket, CMR.

Main Features

75 Ohms SDI coaxial cable
RG-59, 20AWG Solid bare copper
Foil + 95% tinned copper braid shield
PVC Jacket, CMR rated
152m Length, black color
PE Insulation for durability

Specifications

American Wire Gauge	20AWG
Cable Length	152m
CPR Euroclass Rating	Eca
Impedance	75Ohm
Insulation Material	PE
Limited Warranty	10-Year
Material	Bare Copper; PVC
Number of Conductors	1
Package Type	Reel/Spool
Product Series	Coaxial
Product Type	Connector Cable
Solid or Stranded	Solid
Colour	Black
Manufacturer	Belden
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Belden 1505A.00152 SDI Cable Coaxial, RG-59, 20 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR, 152m, Black

Description

Specifications

Belden 1505A.00152 SDI Cable Coaxial, RG-59, 20 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR, 152m, Black
