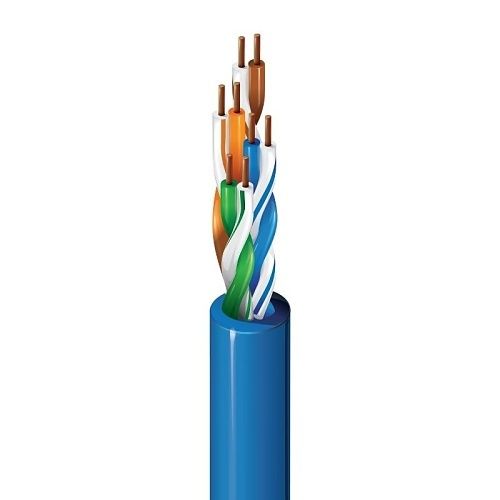

Category 5e Premise Horizontal Cable (100MHz), 4-Pair, 24AWG solid bare copper conductors, U/UTP, Polyethylene insulation, PVC jacket. Suitable as horizontal and building backbone cable; Support current and future Category 5e applications, such as: 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM.
Main Features
Voltage Rating of 72V DC
Operating Temperature from -30°C to 60°C
Electrical values are expected performance based on cable testing and representative performance within a typical Belden system
Fully compatible with network devices
Specifications
American Wire Gauge
24AWG
Cable Length
305m
Cable Type
Category 5e
Compatibility
Category 5e applications; Horizontal and building backbone cable
CPR Euroclass Rating
Eca
Data Transfer Rate
1Gbps
Device Supported
Network Device
Features
Attenuation Crosstalk Ratio Far-end (ACR-F); Attenuation to Crosstalk Ratio (ACR); Bendable; Equal Level Far End Crosstalk (ELFEXT); Minimized Near-End Crosstalk (NEXT); PoE; Power Sum Attenuation to Crosstalk Ratio (PSACR); Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF); Power-sum Equal Level Far-End Crosstalk (PSELFEXT); Power-sum Near End Crosstalk (PSNEXT); Unshielded Twisted Pair (UTP)
