Name: Belden 1855ENH.10100 Serial Digital Interface Coaxial MiniRG59 LSZH, Data Communication Application, 100m, Green
Brand: Belden
SKU: 1855ENH.10100
Price: 143.95 GBP
Availability: InStock

Belden 1855ENH.10100 Serial Digital Interface Coaxial MiniRG59 LSZH, Data Communication Application, 100m, Green

Roll over image to zoom in Click on image to zoom

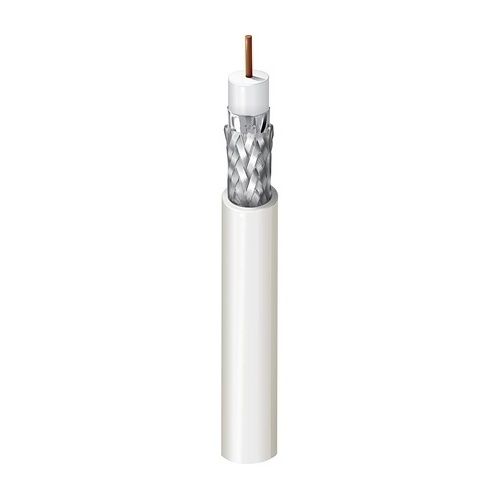

75 Ohm SDI Coax, Mini RG-59, 22AWG solid bare copper conductor, PE insulation, foil 90% tinned copper braid shield, LSZH jacket, Dca. IEC 60332-1-2.

Main Features

75 Ohm SDI Coax for reliable signal transmission
Mini RG-59 with 22AWG solid bare copper conductor
PE insulation for enhanced durability
Foil 90% tinned copper braid shield for protection
LSZH jacket for safety and compliance
100m length suitable for various installations
Green color for easy identification

Specifications

American Wire Gauge	22AWG
Cable Length	100m
Cable Type	Coaxial
CPR Euroclass Rating	Dca
Device Supported	Digital Video
Impedance	75Ohm
Insulation Material	PE
Jacket Type	Halogen-Free Jacket
Limited Warranty	10-Year
Material	Bare Copper; LSZH
Number of Conductors	1
Package Type	Reel/Spool
Product Series	Coaxial
Product Type	Broadcast Cable
Shielding	Yes
Solid or Stranded	Solid
Colour	Green
Manufacturer	Belden CDT, Inc
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Belden 1855ENH.10100 Serial Digital Interface Coaxial MiniRG59 LSZH, Data Communication Application, 100m, Green

Description

Specifications

Belden 1855ENH.10100 Serial Digital Interface Coaxial MiniRG59 LSZH, Data Communication Application, 100m, Green
