Name: Belden 2183P D15A1000 4K Media Cable, Foiled / Unshielded Twisted, Electrical Communication Application, 305m, PVC, Blue
Brand: Belden
SKU: 2183P D15A1000
Price: 2070.45 GBP
Availability: InStock

Belden 2183P D15A1000 4K Media Cable, Foiled / Unshielded Twisted, Electrical Communication Application, 305m, PVC, Blue

Roll over image to zoom in Click on image to zoom

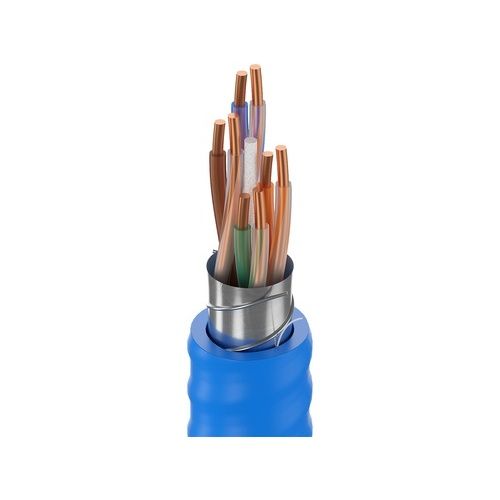

4-Pair 23AWG solid bare copper conductors, FEP insulation, F/UTP, Helical TC Drain, Ripcord, Flamarrest jacket, Plenum CMP-LP (0.6A).

Main Features

4K Media Cable for high-quality video transmission
Foiled/Unshielded Twisted Pair for reduced interference
305m length for extensive coverage
PVC Blue jacket for durability and easy identification
4-Pair 23AWG solid bare copper conductors for reliable connectivity
FEP insulation for enhanced safety and performance
Helical TC Drain for effective grounding

Specifications

American Wire Gauge	23AWG
Application/Usage	4K (UHD/DCI); Full 5-Play; HDBaseT; PoE; POH
Cable Length	305m
Cable Rating	Plenum
Compatibility	HDBaseT, Full 5-Play, 4K (UHD/DCI), POH, POE
Conductor Count	8
Conductor Material	Bare Copper
Environmental Certification	RoHS 2; WEEE
Environmentally Friendly	Yes
Indoor/Outdoor	Indoor
Insulation Material	FEP
Jacket Material	PVC-LS
Jacket Type	Standard
Limited Warranty	10-Year
Material	Bare Copper; FEP; PVC
Number of Conductors	8
Number of Pairs	4
Package Type	Reel/Spool
Packaged Quantity	305
Product Series	Media and Lighting
Product Type	Video Cable
Shielding	Yes
Solid or Stranded	Solid
Colour	Blue
Fibre Category	OM1
Manufacturer	Belden CDT, Inc
Operating Temperature (T-T)	-20-90°C
RoHS Compliant	Compliant
WEEE Compliant	Compliant
