Name: Belden 3108A 0101000 22AWG 3-Pair Multi-Conductor, Non-Plenum, 1000', Black
Brand: Belden
SKU: 3108A 0101000
Price: 2411.00 GBP
Availability: InStock

Belden 3108A 0101000 22AWG 3-Pair Multi-Conductor, Non-Plenum, 1000', Black

Roll over image to zoom in Click on image to zoom

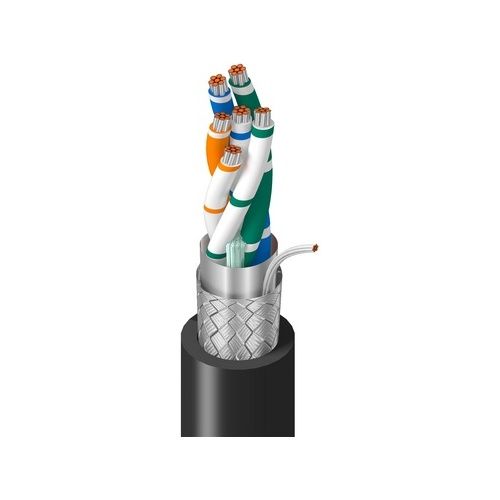

RS-485, 3-Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil+Tinned Copper Braid(65%) Shield, PVC Outer Jacket, CM, PLTC, and oil-resistant.

Main Features

3-Pair 22AWG (7x30) Tinned Copper conductors
PE Insulation for each conductor
Overall Beldfoil and 65% Tinned Copper Braid shield
PVC Outer Jacket
Supports RS-485 communication protocol
Non-plenum rated
CM, PLTC, and oil-resistant ratings

Specifications

American Wire Gauge	22AWG
Cable Rating	CM; PLTC
Cable Type	Serial Communication
Compatibility	HMIs; motors; PLCs; RS-485 devices; RTU; SCADA; VFDs
Device Supported	HMIs; Motors; PLCs; VFDs
Environmental Certification	China RoHS II; EU CE Mark; RoHS; WEEE
Environmentally Friendly	Yes
Impedance	120Ohm
Limited Warranty	10-Year
Material	Chlorinated Polyethylene; Polyethylene; Tinned Copper
Number of Pairs	3
Package Type	Reel/Spool
Shielding	Yes
Solid or Stranded	Stranded
Cable Style	RS-485
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Downloads

Educational Brochure
Manufacturer Brochure
Product Manual
User Manual
