Belden 4302FE.00100 18/4 AWG Stranded BC Security and Commercial Audio Cable, Shielded, LSZH Jacket Grey, CPR Eca, 100m Reel, Gray

Roll over image to zoom in Click on image to zoom

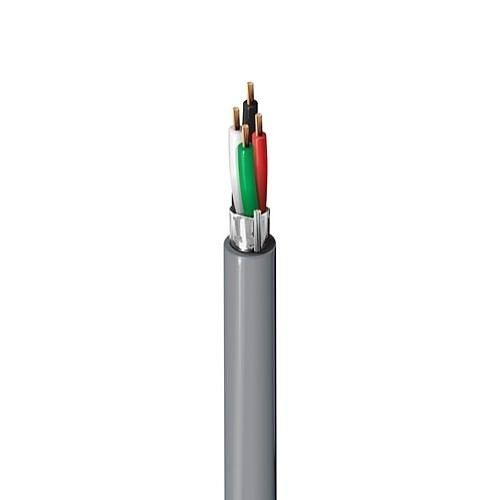

Security and Commercial Audio Cable, 4-18AWG stranded bare copper conductors with polypropylene insulation, Beldfoil shield, LSZH jacket with ripcord, CPR Eca. Suitable for Security Systems, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment.

Main Features

Operating Temperature from -20°C to 70°C
3.5A Max. Current per conductor
CPR Euroclass; Eca. CPR UKCA Class; Eca
Power-limited control equipment
Public address systems

Specifications

American Wire Gauge	18AWG
Cable Length	100m
Cable Type	Bare Wire
Device Supported	Audio System; Control System; Intercom; Security System; Speaker
Environmental Certification	EU RoHS; RoHS 2
Environmentally Friendly	Yes
Features	Bendable; Flame retardant; Halogen Free; Stranded
Insulation Material	Polypropylene
Jacket Material	LSZH
Jacket Type	Halogen-Free Jacket
Limited Warranty	10-Year
Number of Conductors	4
Package Type	Reel/Spool
Product Series	Security & Sound
Product Type	Audio/Control Cable
Shielding	Yes
Solid or Stranded	Stranded
Colour	Grey
Manufacturer	Belden CDT, Inc
RoHS Compliant	Compliant
WEEE Compliant	Compliant
