Name: Belden 5300UE 0081000 18/2 Security and Commercial Audio Cable, Riser-CMR, 1000' Reel, Grey, (Replaces 5300UE 001U1000)
Brand: Belden
SKU: 5300UE 0081000
Price: 304.70 GBP
Availability: InStock

Belden 5300UE 0081000 18/2 Security and Commercial Audio Cable, Riser-CMR, 1000' Reel, Grey, (Replaces 5300UE 001U1000)

Roll over image to zoom in Click on image to zoom

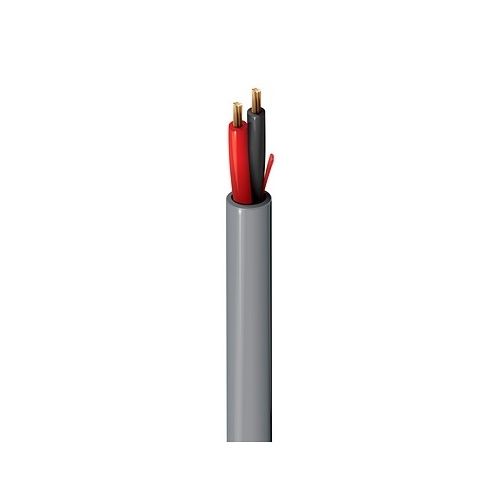

Security and Commercial Audio Cable, Riser-CMR, 2-18AWG stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord.

Main Features

18/2 stranded bare copper conductors
Polypropylene insulation for durability
PVC jacket with ripcord for easy installation
Riser-CMR rated for safety
1000' reel for extensive use
Suitable for security and commercial audio applications
Grey color for discreet installation

Specifications

American Wire Gauge	18AWG
Application/Usage	Control Circuits; Initiating Circuits; Monitor/Detection; Notification Circuits
Cable Length	305m
Conductor Count	2
Conductor Material	Bare Copper
Device Supported	Control Circuits; Initiating Circuits; Monitor/Detection; Notification Circuits
Environmental Certification	RoHS 2; WEEE
Environmentally Friendly	Yes
Indoor/Outdoor	Indoor
Insulation Material	PO
Jacket Material	PVC
Jacket Type	Standard
Limited Warranty	10-Year
Material	Bare Copper; Polyolefin; PVC
Number of Conductors	2
Number of Pairs	1
Package Type	Reel/Spool
Packaged Quantity	305
Product Series	Security & Sound
Product Type	Audio Cable
Shielding	No
Solid or Stranded	Stranded
Colour	Grey
Fibre Category	OM2
Manufacturer	Belden CDT, Inc
Operating Temperature (T-T)	-20-75°C
RoHS Compliant	Compliant
WEEE Compliant	Compliant
