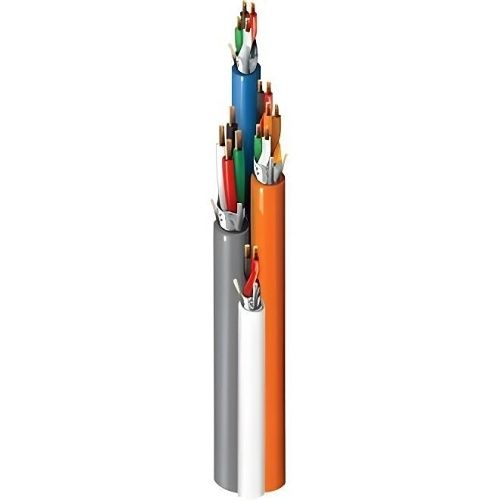

Belden 538AFS 0001000 Banana Peel 16-Conductor Shielded Access Control Cable, 18/3-Pair, 16/4-Conductor, 18/6-Conductor, Stranded BC, Riser-CMR, 305m (1000') Reel, Orange / White / Blue / Gray
SKU: 538AFS 0001000Brand: Belden
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Belden 538AFS 0001000 Banana Peel 16-Conductor Shielded Access Control Cable, 18/3-Pair, 16/4-Conductor, 18/6-Conductor, Stranded BC, Riser-CMR, 305m (1000') Reel, Orange / White / Blue / Gray
£2,882.15
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 16-conductor shielded access control cable
- Stranded bare copper conductors with polypropylene insulation
- Includes 18/3-pair, 16/4-conductor, 18/6-conductor configurations
- Riser-CMR rated for riser applications
- Overall Beldfoil shield providing shielding
- PVC jacket with Banana Peel design (no overall jacket)
Frequently bought together
Belden
Belden 538HMD1 010500 Access Control Cable, Indoor / Outdoor, 4-Core, ECA Rated, 152m
Sale price£1,519.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 5500F1 0081000 22/2 Security and Sound Cable, Rated-CM, Shielded, Water-Blocked, Black
Sale price£378.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 5500F1 0091001 22/2 AWC Security and Sound Cable, Rated-CM, Waterblocking Tape, Beldfoil Shield and PVC Jacket, 305m, White
Sale price£378.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 5500F1 0101000 Security and Sound Cable, Rated-CM, Shielded, Water-Blocked, Grey
Sale price£378.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 5500FE 008U1000 22-2 Stranded BC Riser Security and Audio Cable, CMR, CMG, 1000' UnReel, Grey, (Replaces 5500FE 009U1000)
Sale price£217.60
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
Access Control Cable, Riser-CMR, 3-18 AWG pairs, 4-16 AWG conductors, 4-18 AWG conductors, 2-18 AWG conductors, All conductors stranded bare copper with polypropylene insulation, Each cable has overall Beldfoil shield and PVC jacket, Banana Peel No overall jacket.
Main Features
- 16-conductor shielded access control cable
- Stranded bare copper conductors with polypropylene insulation
- Includes 18/3-pair, 16/4-conductor, 18/6-conductor configurations
- Riser-CMR rated for riser applications
- Overall Beldfoil shield providing shielding
- PVC jacket with Banana Peel design (no overall jacket)
- 305m (1000') reel length
- Color coded conductors: Orange, White, Blue, Gray
Specifications
| American Wire Gauge | 18AWG |
|---|---|
| Application/Usage | Access Control; Power Limited Controls; Security System |
| Boot Type | No Boot |
| Cable Length | 305m |
| Cable Type | Category 6 |
| Conductor Count | 16 |
| Conductor Material | Bare Copper |
| Device Supported | Access Control Device; Card Reader; Door Contact; Security System |
| Diameter | 13.1mm |
| Environmental Certification | China RoHS 2; EU RoHS; EU WEEE; RoHS 2 |
| Environmentally Friendly | Yes |
| Features | Bendable; Stranded |
| Indoor/Outdoor | Indoor |
| Insulation Material | PO |
| Jacket Material | PVC |
| Jacket Type | ArmorFlex |
| Limited Warranty | 1-Year |
| Material | PVC |
| Number of Conductors | 16 |
| Package Type | Reel/Spool |
| Packaged Quantity | 305 |
| Product Type | Control Cable |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Colour | Grey |
| Manufacturer | Belden CDT, Inc |
| Operating Temperature (T-T) | 0-75°C |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
