Name: Belden 6100UE 008U1000 12/2 Security and Commercial Audio Cable, Plenum, Flamarrest Jacket, CL2P, 305m (1000') Reel, Grey
Brand: Belden
SKU: 6100UE 008U1000
Price: 574.70 GBP
Availability: InStock

Belden 6100UE 008U1000 12/2 Security and Commercial Audio Cable, Plenum, Flamarrest Jacket, CL2P, 305m (1000') Reel, Grey

Roll over image to zoom in Click on image to zoom

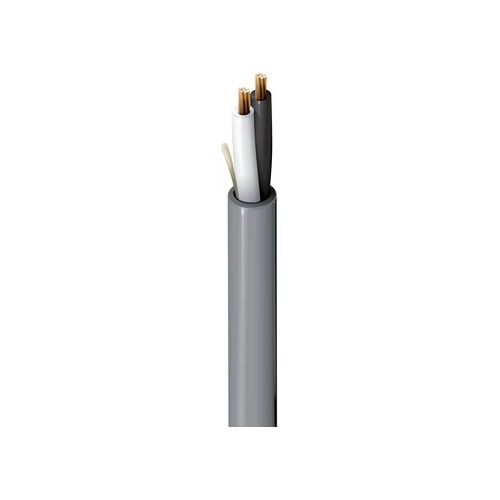

Security and Commercial Audio Cable, Plenum-CL2P, 2-14AWG stranded (19x27) bare copper conductors with Flamarrest insulation, Flamarrest jacket with ripcord.

Main Features

12/2 Security and Commercial Audio Cable
Plenum-rated with Flamarrest Jacket
CL2P certified for safety
305m (1000') Reel for extended use
Grey color for versatile applications
Stranded bare copper conductors
Includes ripcord for easy installation

Specifications

American Wire Gauge	14AWG
Application/Usage	Intercom/PA Systems; Sound/Audio Systems
Cable Length	305m
Cable Rating	CL2P
Cable Type	Bare Wire
Compatibility	Intercom/PA Systems; Sound/Audio Systems
Conductor Count	2
Conductor Material	Bare Copper
Device Supported	Intercom/PA Systems; Sound/Audio Systems
Environmental Certification	RoHS 2; WEEE
Environmentally Friendly	Yes
Indoor/Outdoor	Indoor
Insulation Material	PVC-LS
Jacket Material	PVC-LS
Jacket Type	Standard
Limited Warranty	10-Year
Material	Bare Copper; PVC
Number of Conductors	2
Number of Pairs	1
Package Type	Reel-in-a-Box
Packaged Quantity	305
Product Series	Security & Sound
Product Type	Audio Cable
Shielding	No
Solid or Stranded	Stranded
Colour	Grey
Fibre Category	OM3
Fibre Optic Mode	Multimode
Manufacturer	Belden CDT, Inc
Operating Temperature (T-T)	0-75°C
RoHS Compliant	Compliant
WEEE Compliant	Compliant
