Name: Belden 6281MD 0101000 22/1 + 16/2 OSDP Reader Cable, Stranded TC, Shielded, CMP, 305m, Black
Brand: Belden
SKU: 6281MD 0101000
Price: 1463.20 GBP
Availability: InStock

Belden 6281MD 0101000 22/1 + 16/2 OSDP Reader Cable, Stranded TC, Shielded, CMP, 305m, Black

Roll over image to zoom in Click on image to zoom

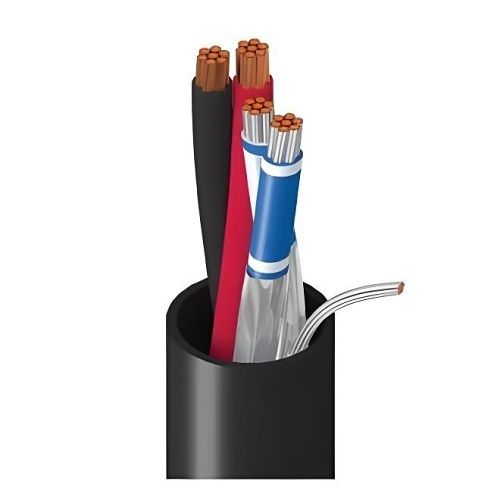

OSDP Reader cable, 1-pair 22AWG stranded (7x30) tinned copper (data) with foam FEP insulation, Beldfoil shield with drain, 2-conductor 16AWG stranded (19x29) Bare copper conductor (power) with Flamarrest insulation, plenum.

Main Features

OSDP Reader Cable for secure data transmission
1-Pair 22AWG Stranded tinned copper for data
Foam FEP insulation for enhanced durability
Beldfoil shield with drain for protection
2-Conductor 16AWG Stranded bare copper for power
Flamarrest insulation for safety
305m Length for extensive reach
CMP Rated for plenum use
Black color for professional appearance

Specifications

American Wire Gauge	22AWG
Application/Usage	Access Control; OSDP Readers; RS-485; Serial Data
Cable Rating	Plenum
Conductor Count	1
Conductor Material	Bare Copper
Indoor/Outdoor	Indoor
Insulation Material	FEP
Jacket Material	Flamarrest; PVC
Jacket Type	Standard
Limited Warranty	10-Year
Number of Conductors	2
Number of Pairs	1
Shielding	Yes
Solid or Stranded	Stranded
Colour	Black
Operating Temperature (T-T)	-20-60°C
RoHS Compliant	Compliant
WEEE Compliant	Compliant
