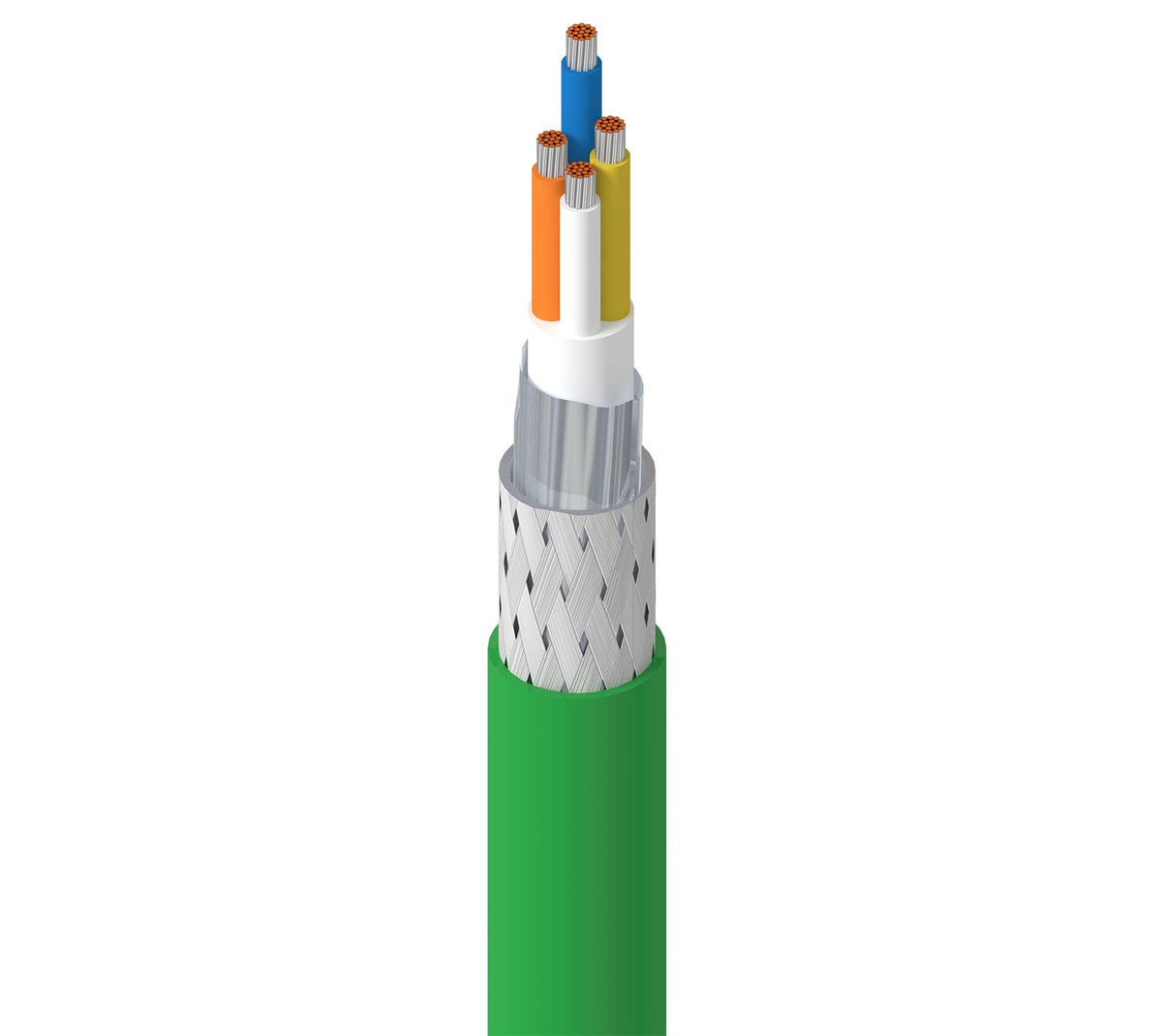

Name: Belden 70009PU.01500 DataTuff 5E 1 Quad 22AWG Tinned Copper Stranded Cable, Polyethylene Insulation, SF/UTP Overall Braid Foil shielding, PUR Halogen Free Jacket, PROFINET Type C, 500m Reel, Green
Brand: Belden
SKU: 70009PU.01500
Price: 1329.10 GBP
Availability: InStock

Belden 70009PU.01500 DataTuff 5E 1 Quad 22AWG Tinned Copper Stranded Cable, Polyethylene Insulation, SF/UTP Overall Braid Foil shielding, PUR Halogen Free Jacket, PROFINET Type C, 500m Reel, Green

Roll over image to zoom in Click on image to zoom

DataTuff 5E, 1 Quad 22AWG Stranded Tinned Copper, Polyethylene insulation, SF/UTP, Overall Braid + Foil shielding, PUR Halogen Free jacket, PROFINET type C, 2m torsion.

Main Features

PROFINET Type C
2M Torsion cycles
Halogen Free PUR jacket
19x0.15mm Stranding
100% Tape Coverage
85% Braid Coverage
Sunlight Resistance
Oil Resistance
Weld-Splatter Resistant Sheath
Grade 1 Transfer Impedance Class

Specifications

American Wire Gauge	22AWG
Application/Usage	data communication; factory or process automation; harsh environment; IIoT; IP cameras and devices; PROFINET Cat5e
Cable Length	500m
Cable Type	SF/UTP
Conductor Count	4
Conductor Material	Tinned Copper
Diameter	6.5mm
Environmental Certification	RoHS
Features	100% Tape Coverage; 19x0.15 mm Stranding; 2M torsion cycles; 85% Braid Coverage; Grade 1 Transfer Impedance Class; Halogen Free PUR jacket; Oil Resistance; PROFINET type C; Sunlight Resistance; Weld-Splatter Resistant Sheath
Impedance	100Ohm
Insulation Material	PE (Polyethylene)
Jacket Material	PUR (Polyurethane)
Length	500.0m
Material	Polyethylene; Polyurethane; Thermoplastic Elastomer; Tinned Copper
Number of Conductors	4
Number of Pairs	2
Package Type	Reel/Spool
Product Line	DataTuff®
Product Type	Category 5e Cable
Shielding	Yes
Solid or Stranded	Stranded
Voltage Rating	300V
Additional Information	1 quad with centre filler; Bedding; Coupling Attenuation; Sheath Resists Weld-Splatter
CE Marking	Yes
Colour	Green
Localization	English
Operating Temperature (T-T)	-40-80°C
RoHS Compliant	Compliant
Storage Temperature (T-T)	-40-80°C
UKCA Marking	Yes
WEEE Compliant	Out of Scope

Belden 70009PU.01500 DataTuff 5E 1 Quad 22AWG Tinned Copper Stranded Cable, Polyethylene Insulation, SF/UTP Overall Braid Foil shielding, PUR Halogen Free Jacket, PROFINET Type C, 500m Reel, Green

Description

Specifications

Belden 70009PU.01500 DataTuff 5E 1 Quad 22AWG Tinned Copper Stranded Cable, Polyethylene Insulation, SF/UTP Overall Braid Foil shielding, PUR Halogen Free Jacket, PROFINET Type C, 500m Reel, Green
