| American Wire Gauge |
26AWG |
| Application/Usage |
Cat5e, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |
| Cable Length |
305m |
| Cable Type |
SF/UTP |
| Conductor Count |
8 |
| Conductor Material |
Bare Copper |
| Diameter |
6.5mm |
| Environmental Certification |
RoHS |
| Features |

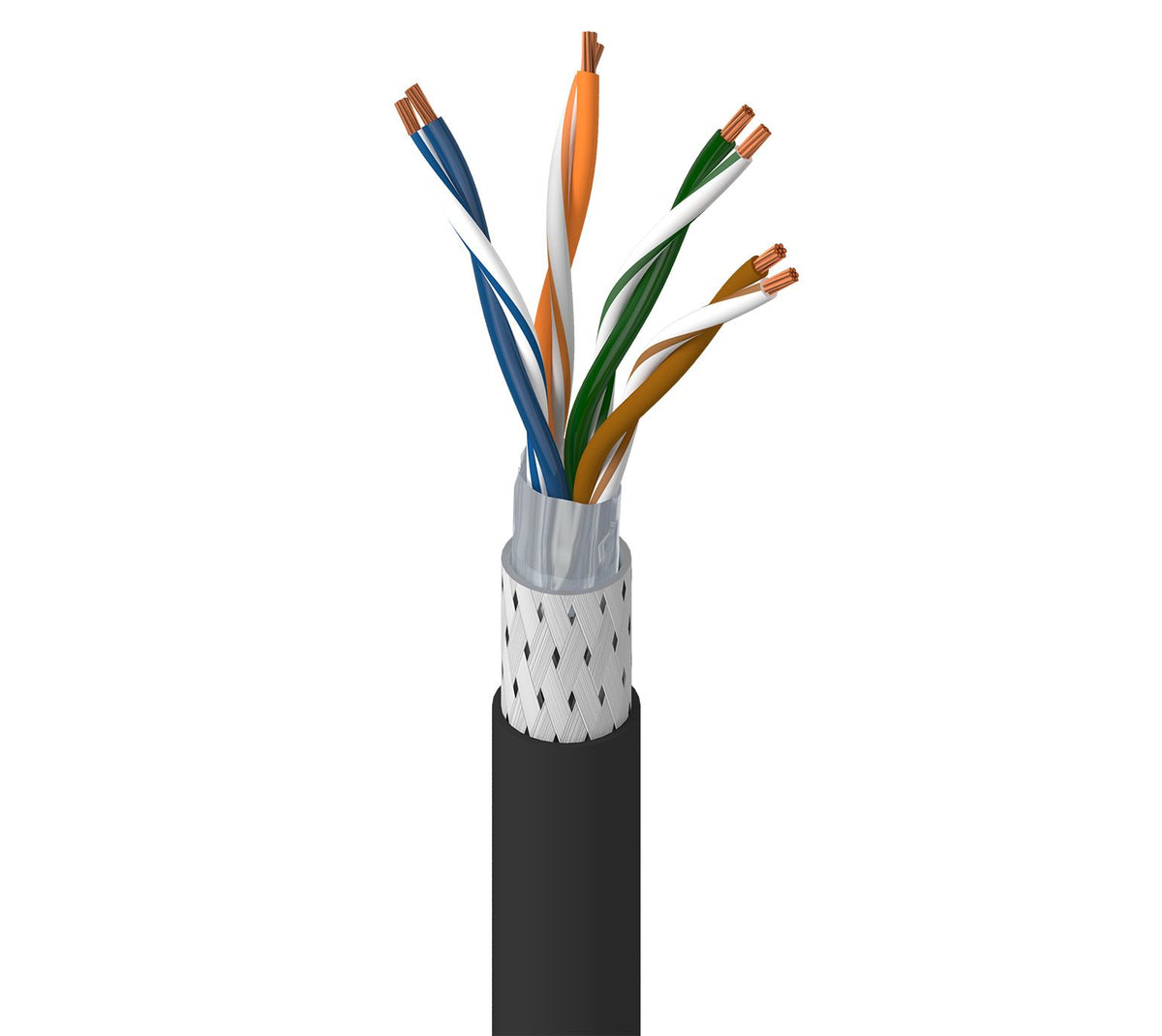

AWM 20549 Compliance; Category 5e Performance; DataTuff 5E; Flame Retardant Sheath; Indoor/Outdoor Suitability; Oil Resistance; PUR Halogen Free jacket; SF/UTP - Overall Braid + Foil shielding; Stranded Bare Copper Conductor; Sunlight Resistance |
| Impedance |
100Ohm |
| Indoor/Outdoor |
Indoor; Outdoor |
| Insulation Material |
PE (Polyethylene) |
| Jacket Material |
PUR (Polyurethane) |
| Material |
Copper; Polyethylene; Polyurethane |
| Maximum Operating Voltage |
450V |
| Number of Conductors |
8 |
| Number of Pairs |
4 |
| Package Type |
Reel/Spool |
| Product Line |
DataTuff |
| Product Type |
Connector Cables |
| Shielding |
Yes |
| Solid or Stranded |
Stranded |
| Voltage Rating |
300V AC; 450V DC |
| Maximum Operating Temperature |
80°C |
| Additional Information |
Aluminium outside; Flame Retardant Sheath |
| CE Marking |
Yes |
| Certifications & Standards |
ANSI/TIA 568.2-D; EN 50173-1; IEC 60754-1; IEC 60754-2; ISO/IEC 11801-1 |
| Colour |
Black |
| Localization |
English |
| Operating Temperature (T-T) |
-45-80°C |
| Operating Voltage |
300V AC; 450V DC |
| RoHS Compliant |
Compliant |
| Storage Temperature (T-T) |
-40-80°C |
| WEEE Compliant |
Out of Scope |
