Name: Belden 83333E 0091000 24-3 Stranded SC High Temperature Electronic Cable, FCA, 1000' Reel, White
Brand: Belden
SKU: 83333E 0091000
Price: 4158.35 GBP
Availability: InStock

Belden 83333E 0091000 24-3 Stranded SC High Temperature Electronic Cable, FCA, 1000' Reel, White

Roll over image to zoom in Click on image to zoom

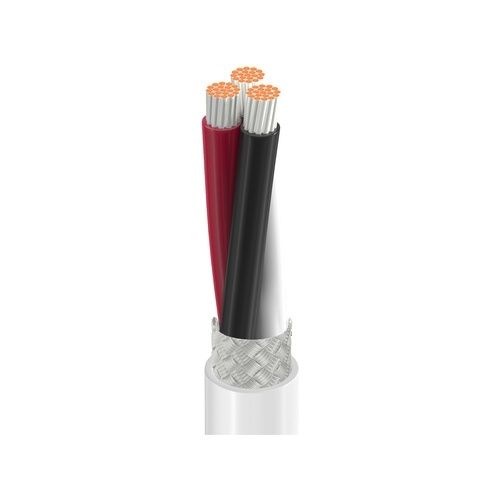

High-Temperature Electronic, 3-conductor 24AWG (19x36) Silver Plated Copper, TFE Insulation, Overall Silver Plated Copper Braid(85%) shield, TFE Tape Outer Jacket, MIL-W-16878/4 (Type E).

Main Features

High-temperature electronic cable
3-conductor 24AWG stranded design
Silver plated copper for enhanced conductivity
TFE insulation for durability
Overall silver plated copper braid shield
TFE tape outer jacket for protection
Complies with MIL-W-16878/4 (Type E) standards

Specifications

American Wire Gauge	24AWG
Cable Length	305m
Environmental Certification	RoHS 2; WEEE
Jacket Type	Standard
Limited Warranty	10-Year
Material	Polytetrafluoroethylene; Silvered Copper
Number of Conductors	3
Package Type	Reel/Spool
Product Series	Data Cables
Product Type	Multi-Conductor Cable
Shielding	Yes
Solid or Stranded	Stranded
Colour	White
Manufacturer	Belden CDT, Inc
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Downloads

Manufacturer Brochure
