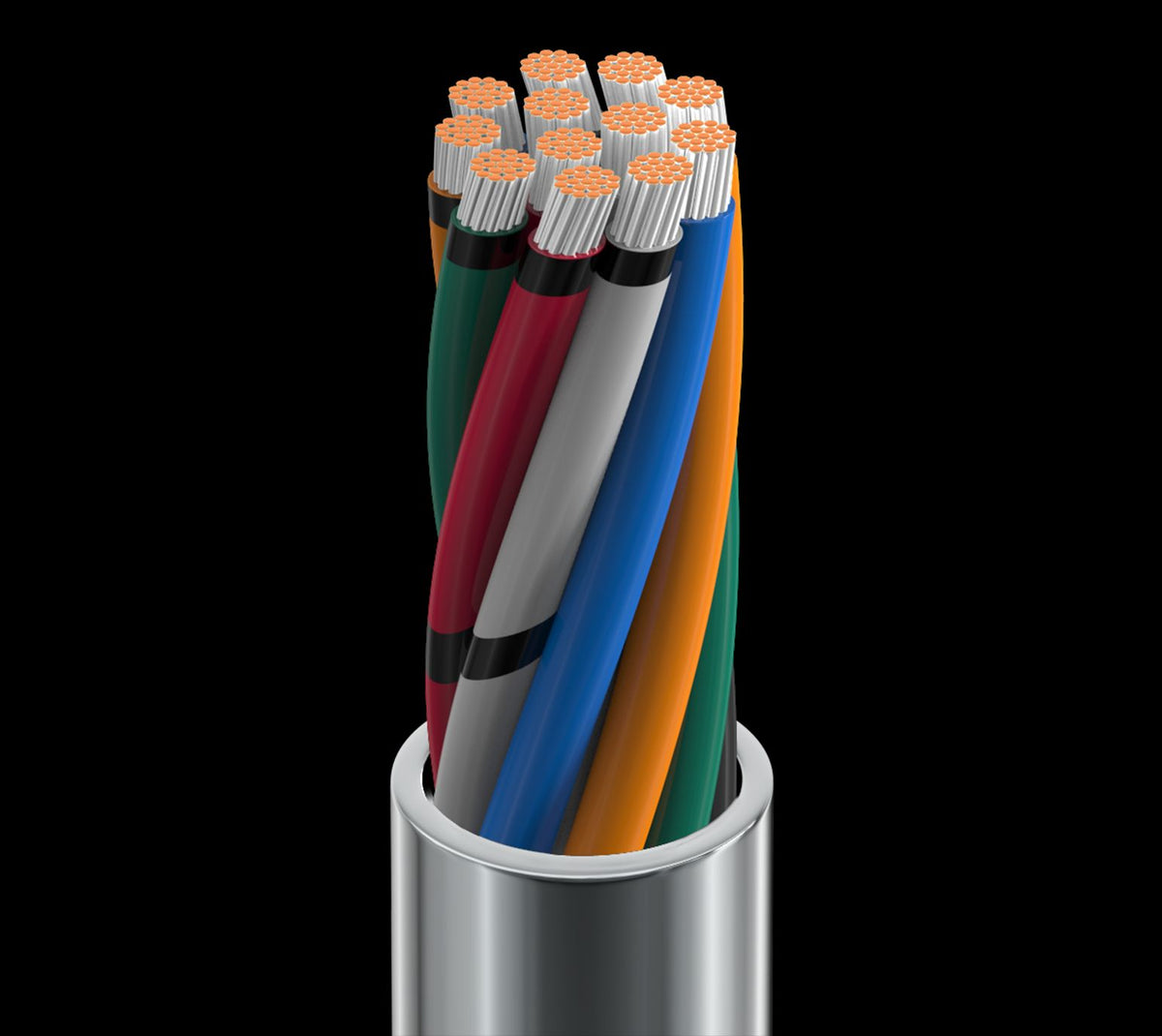

Belden 8466 060500 18-12 Electronic Cable, 19x30 Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG, 500' Reel, Chrome
SKU: 8466 060500Brand: Belden
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Belden 8466 060500 18-12 Electronic Cable, 19x30 Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG, 500' Reel, Chrome
£1,862.45
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 18AWG Stranding (19x30)
- Tinned Copper Conductors
- PVC Insulation and Jacket
- 300V Voltage Rating
- CMG Flame Rating
- CPR Euroclass Eca
Frequently bought together
Belden
Belden 8470 0631000 16/2 Figure 8 Speaker Cable, 305m, Black, (Replaces 8470 063500)
Sale price£642.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8470 063U1000 16-2 Stranded TC High-Conductivity Copper Speaker Cable, Unshielded, PVC Insulation, 1000', Black and White
Sale price£642.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8471.00U305 2-Conductor Data Cable PVC, Enhanced Category, 305m, Chrome, White
Sale price£737.35
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8471ELW.00305 Data Cable, 2-Conductor, Chrome Low Smoke Zero Halogen, Copper Clad Aluminum, 305m, White
Sale price£895.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 8471ELW.02305 16-2 Stranded TC Electronic Data Cable, LSZH Insulation, LSZH Outer Jacket, 305m
Sale price£895.70
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
Electronic, 12-Conductor 18AWG (19x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG.
Main Features
- 18AWG Stranding (19x30)
- Tinned Copper Conductors
- PVC Insulation and Jacket
- 300V Voltage Rating
- CMG Flame Rating
- CPR Euroclass Eca
- Operating Temperature -20°C to +60°C
- 12-Conductors
- Chrome Jacket Color
- Indoor Suitability
Specifications
| American Wire Gauge | 18AWG |
|---|---|
| Amperage | 9.8A |
| Application/Usage | ...); low voltage control (24v; …); line level audio; voice communications; panel wiring; 0-10v; low voltage analog signals (4-20ma |
| Cable Length | 152m |
| Cable Rating | CMG |
| Conductor Count | 12 |
| Conductor Material | Tinned Copper |
| CPR Euroclass Rating | Eca |
| Current Rating | 10A |
| Diameter | 10.5mm |
| Environmental Certification | RoHS; WEEE |
| Environmentally Friendly | Yes |
| Features | 12 Conductors; 18 AWG Stranding (19x30); 300V Voltage Rating; Chrome Jacket Color; CMG Flame Rating; CPR Euroclass Eca; Indoor suitability; Operating Temperature -20°C to +60°C; PVC Insulation and Jacket; Tinned Copper Conductors |
| Indoor/Outdoor | Indoor |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Jacket Material | PVC (Polyvinyl Chloride) |
| Length | 152.0m |
| Material | Copper; Polyvinyl Chloride |
| Maximum Operating Voltage | 300V |
| Number of Conductors | 12 |
| Package Type | Reel/Spool |
| Product Line | Classics |
| Product Type | Multi-Conductor Cable |
| Shielding | No |
| Solid or Stranded | Stranded |
| Voltage Rating | 300V |
| Weight | 25.63kg |
| Maximum Operating Temperature | 60°C |
| CE Marking | Yes |
| Certifications & Standards | Article 800; AWM 2598; China RoHS II (GB/T 26572-2011); EU Directive 2011/65/EU; EU Directive 2012/19/EU; EU Directive 2015/863/EU; FT4; IEC 60332-1-2; UL 1685 FT4 Loading |
| Colour | Silver |
| Localization | English |
| Operating Temperature (T-T) | -20-60°C |
| Operating Voltage | 300V |
| RoHS Compliant | Compliant |
| UKCA Marking | Yes |
| UL Listed | Yes |
| WEEE Compliant | Out of Scope |
Datasheet
Belden 8466 060500 18-12 Electronic Cable, 19x30 Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG, 500' Reel, Chrome Need the datasheet? Our team will email it to you. Request datasheet
