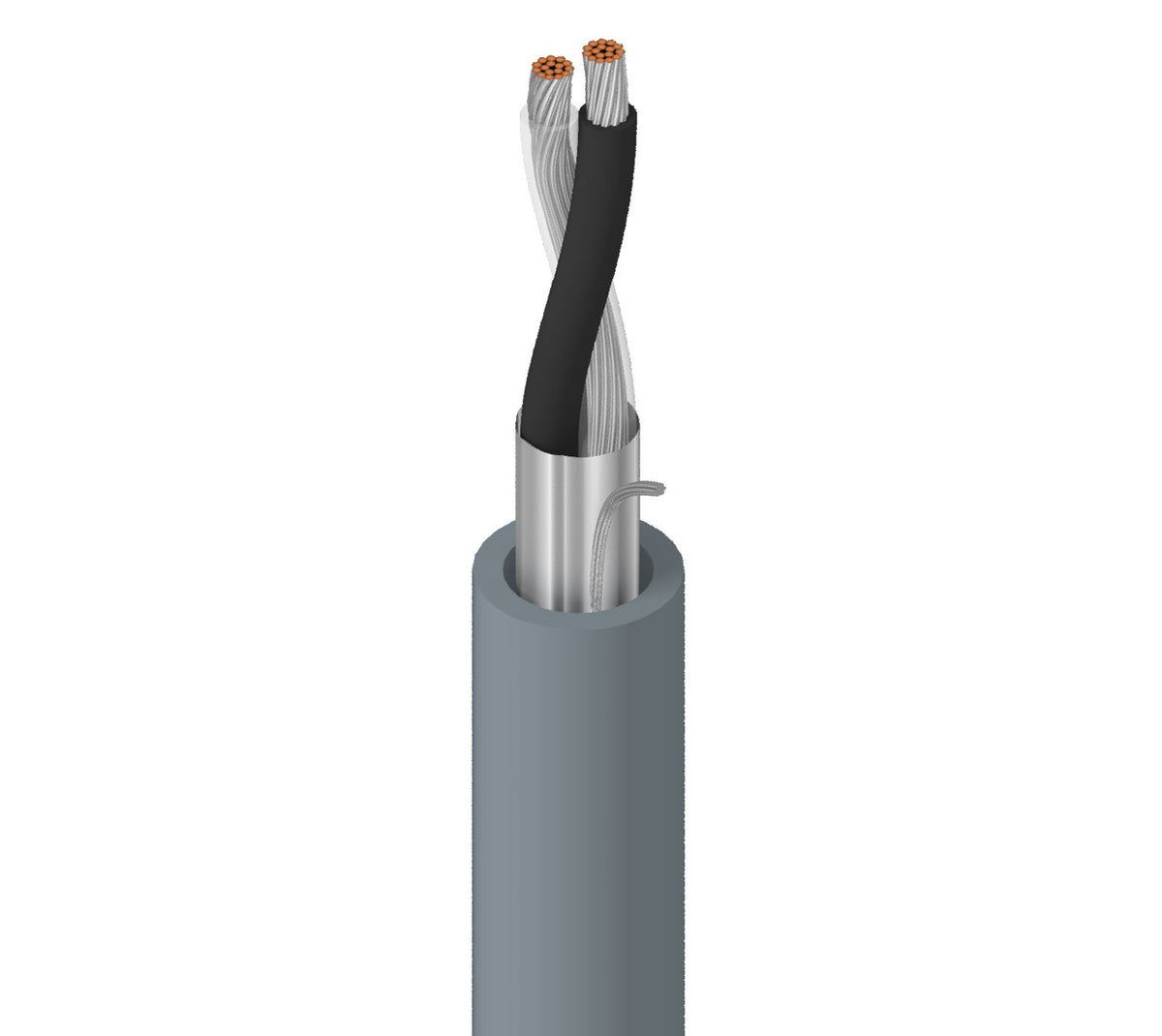

Name: Belden 8760.00U152 18-2 Electronic Cable, 16x30 Tinned Copper, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM, 152m UnReel, Chrome
Brand: Belden
SKU: 8760.00U152
Price: 295.05 GBP
Availability: InStock

Belden 8760.00U152 18-2 Electronic Cable, 16x30 Tinned Copper, PE Insulation, Overall Beldfoil Shield, PVC Outer Jacket, CM, 152m UnReel, Chrome

Roll over image to zoom in Click on image to zoom

Electronic cable suitable for low-voltage analog / digital signals, audio, and computer communication.

Main Features

18AWG Stranded Tinned Copper Conductors
Polyethylene Insulation
Overall Beldfoil Shield (100% coverage)
20AWG Stranded Tinned Copper Drainwire
PVC Outer Jacket
UL Voltage Rating of 300V
Operating Temperature Range -20°C to +60°C
CPR Euroclass Eca
Flammability Rating UL 1685
Suitable for Panel Wiring

Specifications

American Wire Gauge	18AWG
Amperage	14.0A
Application/Usage	...); low voltage digital control (24v; …); Line Level Audio; Computer Communication; Panel Wiring; 0-10v; low voltage analog signals (4-20ma
Cable Length	152m
Cable Type	Multi-Pair Cable
Compatibility	82760; 87760; 88760
Conductor Material	Tinned Copper
CPR Euroclass Rating	Eca
Current Rating	14A
Diameter	5.6mm
Environmental Certification	RoHS 2; WEEE
Environmentally Friendly	Yes
Features	18 AWG Stranded Tinned Copper Conductors; 20 AWG Stranded Tinned Copper Drainwire; CPR Euroclass Eca; Flammability Rating UL 1685; Operating Temperature Range -20°C to +60°C; Overall Beldfoil Shield (100% coverage); Polyethylene Insulation; PVC Outer Jacket; Suitable for Panel Wiring; UL Voltage Rating of 300V
Indoor/Outdoor	Indoor
Insulation Material	PE (Polyethylene)
Jacket Material	PVC (Polyvinyl Chloride)
Length	152.0m
Material	Aluminum; Polyester; Polyethylene; Polyvinyl Chloride; Tinned Copper
Maximum Operating Voltage	300V
Number of Conductors	2
Number of Pairs	1
Product Line	Classics
Product Series	Multi-Pair Cable
Product Type	Multi-Pair Cable
Shielding	Yes
Solid or Stranded	Stranded
Voltage Rating	300V
Weight	5.66kg
Maximum Operating Temperature	60°C
CE Marking	Yes
Certifications & Standards	Article 800; AWM 2092; Cm; EU Directive 2011/65/EU; EU Directive 2012/19/EU; EU Directive 2015/863/EU; IEC 60332-1-2; UKCA Mark; UL 1685
Colour	Silver
Localization	English
Operating Temperature (T-T)	-20-60°C
Operating Voltage	300V
RoHS Compliant	Compliant
UKCA Marking	Yes
UL Listed	Yes
WEEE Compliant	Out of Scope
