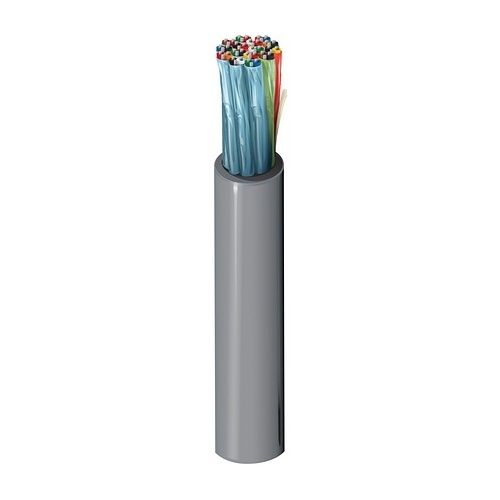

Name: Belden 8775 0601000 22/11 Audio, Control and Instrument Pair Cable, TC, Polypropylene Insulation, Individually Shielded Pairs with Beldfoil, Overall PVC Jacket, CM, 305m Reel, Chrome
Brand: Belden
SKU: 8775 0601000
Price: 4999.50 GBP
Availability: InStock

Belden 8775 0601000 22/11 Audio, Control and Instrument Pair Cable, TC, Polypropylene Insulation, Individually Shielded Pairs with Beldfoil, Overall PVC Jacket, CM, 305m Reel, Chrome

Roll over image to zoom in Click on image to zoom

Belden 8775 is an audio, control, and instrumentation cable designed for medium channel‑count installations. It uses 11 pairs of 22 AWG stranded tinned copper conductors with individually shielded pairs for improved noise immunity. Supplied in chrome on a 305m reel.

Main Features

Audio cable
Control and Instrument Cable
11-Pair, 22 AWG stranded (7x30) tinned copper conductor
Polypropylene insulation
Individually shielded pairs with Beldfoil (100% coverage)
Overall PVC Jacket and 22 AWG stranded tinned copper drain wire

Specifications

American Wire Gauge	22AWG
Cable Length	305m
Environmental Certification	RoHS 2; WEEE
Environmentally Friendly	Yes
Impedance	50Ohm
Limited Warranty	10-Year
Number of Pairs	11
Product Series	Data Cables
Solid or Stranded	Stranded
Colour	Chrome
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Downloads

Product Manual

Belden 8775 0601000 22/11 Audio, Control and Instrument Pair Cable, TC, Polypropylene Insulation, Individually Shielded Pairs with Beldfoil, Overall PVC Jacket, CM, 305m Reel, Chrome
