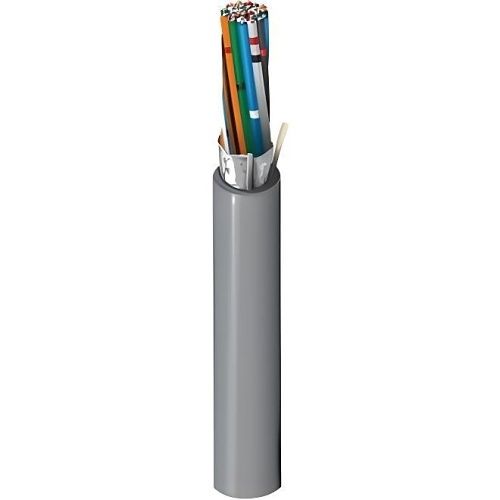

Name: Belden 9542 060100 Data Cable, 20-Conductors, Gray PVC Jacket, ECA, 30m
Brand: Belden
SKU: 9542 060100
Price: 196.70 GBP
Availability: InStock

Belden 9542 060100 Data Cable, 20-Conductors, Gray PVC Jacket, ECA, 30m

Roll over image to zoom in Click on image to zoom

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Main Features

20-conductor cable configuration
Gray PVC jacket for protection
Compliant with EIA RS-232 standard
24 AWG stranded (7x32) tinned copper conductors
Semi-rigid PVC insulation
Overall Beldfoil shield with 100% coverage
24AWG stranded tinned copper drain wire
30 meter cable length

Specifications

American Wire Gauge	24AWG
Cable Length	30m
Conductor Material	Tinned Copper
Indoor/Outdoor	Indoor
Insulation Material	Polyvinyl Chloride
Jacket Material	Polyvinyl Chloride
Limited Warranty	10-Year
Colour	Silver
Operating Temperature (T-T)	-30-80°C
RoHS Compliant	Compliant
WEEE Compliant	Out of Scope

Downloads

Product Manual
