Name: Belden 9773MN 008100 Individual Foil Shield PP Insulation Audio Control Cable, 3-Pair, Grey, 30m
Brand: Belden
SKU: 9773MN 008100
Price: 180.35 GBP
Availability: InStock

Belden 9773MN 008100 Individual Foil Shield PP Insulation Audio Control Cable, 3-Pair, Grey, 30m

Roll over image to zoom in Click on image to zoom

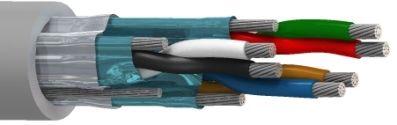

SpaceMaker, 3-pair 18AWG (41x34) Tinned Copper, PO insulation, individual and Overall Beldfoil Shield, PVC outer jacket, AWM 2937.

Main Features

3-pair 18AWG (41x34) tinned copper conductors
Individual foil shield and overall Beldfoil shield
PP insulation on each conductor
PVC outer jacket
30-meter length
Grey color
AWM 2937 standard
SpaceMaker style cable

Specifications

American Wire Gauge	18AWG
Cable Length	30m
Environmental Certification	CE; RoHS; WEEE
Impedance	39Ohm
Limited Warranty	Not provided
Number of Pairs	3
Package Type	Reel/Spool
Shielding	Yes
Solid or Stranded	Stranded
Colour	Grey
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Downloads

Educational Brochure
Manufacturer Brochure
Product Manual
