Belden 9842LV.02305 RS-485 24/2 Stranded TC Cable, Polyethylene Insulation, Overall Beldfoil + TC Braid Shield, LSZH Jacket, CM, CPR B2ca, 305m Reel, White
SKU: 9842LV.02305Brand: Belden
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Belden 9842LV.02305 RS-485 24/2 Stranded TC Cable, Polyethylene Insulation, Overall Beldfoil + TC Braid Shield, LSZH Jacket, CM, CPR B2ca, 305m Reel, White
£2,239.70
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- RS-485 Multi-Pair Cable
- Low Smoke Zero Halogen (LSZH) Jacket
- CPR Euroclass B2ca Rating
- 90% Tinned Copper Braid Shield
- 100% Beldfoil Shield Coverage
- 24 AWG Stranded Tinned Copper Conductors
Frequently bought together
Belden
Belden 9842LW.00305 24/2 Stranded TC RS485 Data Cable, LSZH Outer Jacket, CPR Cca, 305m
Sale price£2,221.60
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 9842LW.00500 24/2 Stranded TC Shielded RS485 Cable, PO Insulation, LSZH Jacket, CCA, 500m Reel, Chrome
Sale price£3,642.00
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 9842LW.02305 24/2 Stranded TC RS485 Data Cable, LSZH Outer Jacket, CPR Cca, 305m, White
Sale price£2,221.60
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 9842NH.00152 24/2 Stranded TC PO Insulation Multi-Pair Cable, RS-485, 152m Reel, Chrome
Sale price£1,054.75
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Belden
Belden 9842NH.00305 24/2 Stranded TC PO Insulation Multi-Pair Cable, RS-485, 305m Reel, Chrome
Sale price£2,116.40
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details

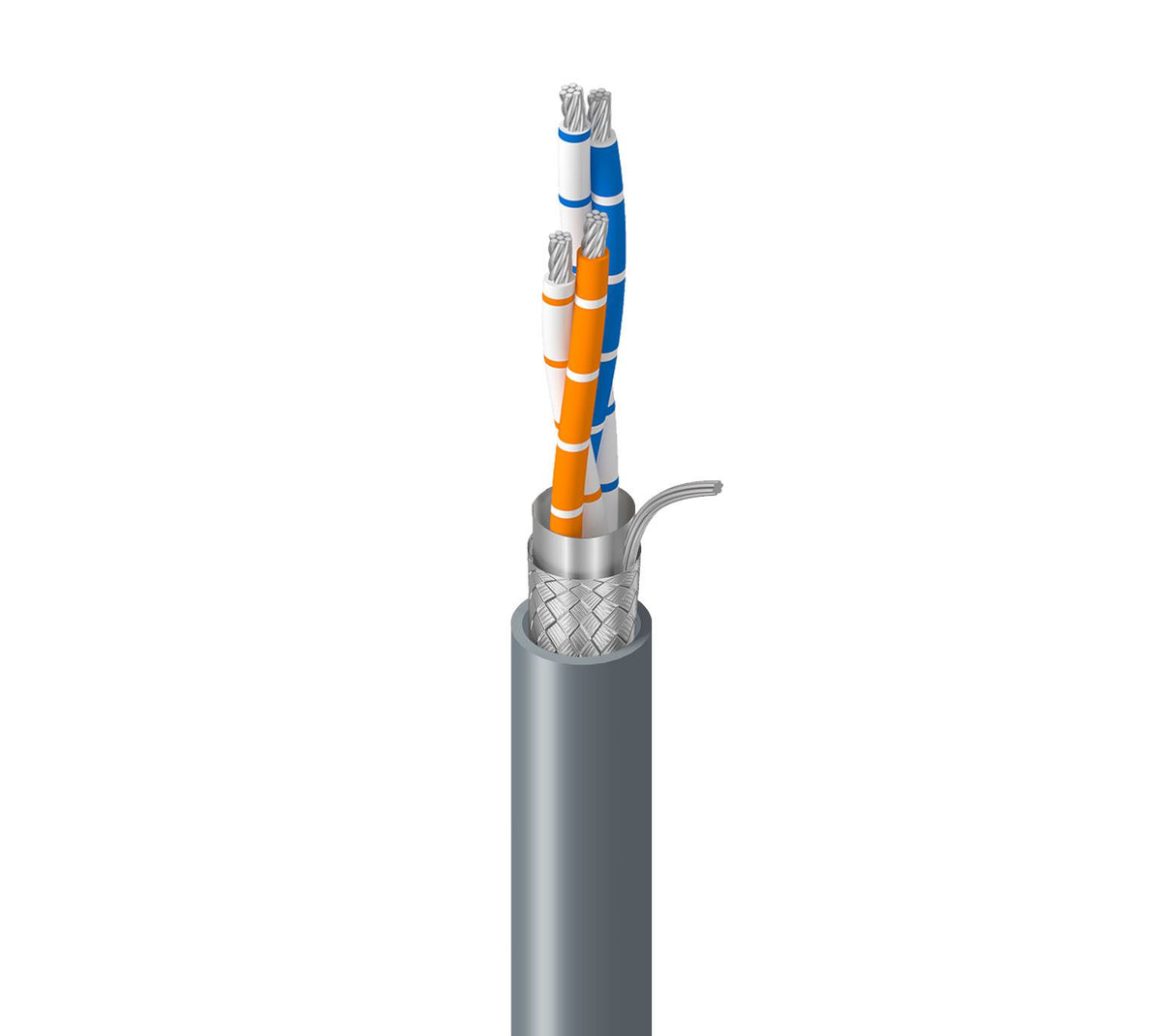

RS-485, 2 Pair, 24 AWG stranded (7x32) Tinned Copper conductors, Polyethylene insulation, twisted pairs, overall Beldfoil (100% coverage) + Tinned Copper braid shield (90% coverage), 24 AWG stranded Tinned Copper drain wire, LSZH jacket, CM, CPR B2ca.
Main Features
- RS-485 Multi-Pair Cable
- Low Smoke Zero Halogen (LSZH) Jacket
- CPR Euroclass B2ca Rating
- 90% Tinned Copper Braid Shield
- 100% Beldfoil Shield Coverage
- 24 AWG Stranded Tinned Copper Conductors
- Polyethylene Insulation
- Sunlight and Oil Resistant
- 300V Voltage Rating
- Operating Temperature up to 80°C
Specifications
| American Wire Gauge | 24AWG |
|---|---|
| Amperage | 2.1A |
| Cable Length | 305m |
| Cable Rating | CM |
| Cable Type | RS-485 |
| Compatibility | DMX-512 |
| Conductor Count | 4 |
| Conductor Material | Tinned Copper |
| CPR Euroclass Rating | B2ca-s1a,d1,a1 |
| Diameter | 8.4mm |
| Environmental Certification | Halogen Free; RoHS |
| Environmentally Friendly | Yes |
| Features | 100% Beldfoil Shield Coverage; 24 AWG Stranded Tinned Copper Conductors; 300V Voltage Rating; 90% Tinned Copper Braid Shield; CPR Euroclass B2ca Rating; Low Smoke Zero Halogen (LSZH) Jacket; Operating temperature up to 80°C; Polyethylene Insulation; RS-485 Multi-Pair Cable; Sunlight and Oil Resistant |
| Impedance | 120Ohm |
| Indoor/Outdoor | Indoor; Outdoor |
| Insulation Material | PE (Polyethylene) |
| Material | Aluminum; Low Smoke Zero Halogen; Polyester; Polyethylene; Tinned Copper |
| Number of Conductors | 4 |
| Number of Pairs | 2 |
| Package Type | Reel/Spool |
| Product Line | Classics |
| Product Series | SpaceMaker |
| Product Type | Multi-Pair Cable |
| Shielding | Yes |
| Solid or Stranded | Stranded |
| Voltage Rating | 300V |
| Weight | 96.00kg |
| Maximum Operating Temperature | 80°C |
| CE Marking | Yes |
| Certifications & Standards | UL 1685, IEC 60332-1-2, Article 800, AWM 20851, EN 50290-2-20, IEC 62821-1, IEC 60754-1, IEC 60754-2, IEC 61034-2, DMX-512 |
| Colour | White |
| Localization | English |
| Operating Temperature (T-T) | -45-80°C |
| RoHS Compliant | Compliant |
| Storage Temperature (T-T) | -45-80°C |
| UKCA Marking | Yes |
| UL Listed | Yes |
| WEEE Compliant | Out of Scope |
