C-TEC 5 Series 24V 5A Encased Power Supply PCB Only (BF562-5/E)

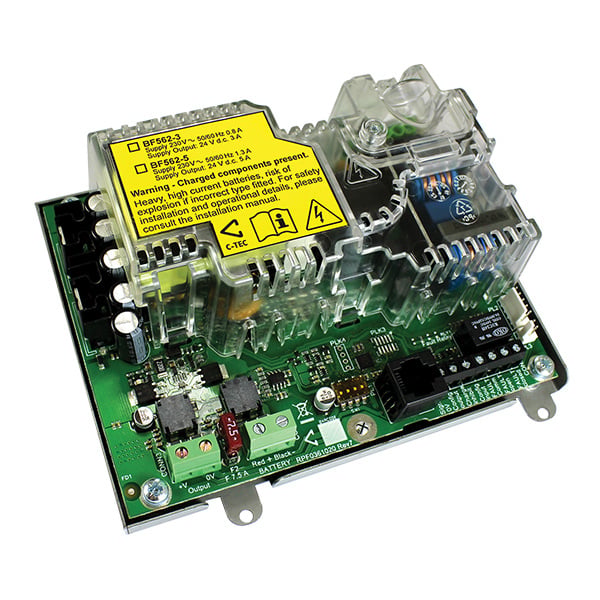

The C-TEC BF562-5/E is an encased 24V 5A switch mode/digital hybrid power supply from C-TEC's 5 Series. It uses the same electronics as the LPCB/VdS certified BF562-5 EN54-4/A2 boxed PSU, but is supplied on a metal base plate with a plastic cover so it can be mounted inside a third-party (OEM) enclosure. Full compliance with the relevant standards must be checked by the responsible person once the PSU is installed in a suitable enclosure.

Key features

• Same electronics as the BF562-5 EN54-4/A2 boxed 24V 5A PSU
• Metal base plate for straightforward mounting inside third-party enclosures
• Plastic cover over the PCB guards against touching live parts (to VDE 0100-410)
• Single-pole volt-free changeover relay that switches on any fault condition
• Fault type and hazardous voltages present LEDs
• Two selectable battery charge currents
• Battery resistance monitoring to EN54-4/A2; fault impedance limits can be optimised to suit the load current
• Mains fail simulation mode
• On-board temperature sensor, with an optional BF322 remote battery temperature sensor
• Can be customised with a BF423 configurator and PC (float voltage temperature compensation, charge rate, battery impedance, input/output settings)
• Bi-directional data port for PSU status data
• Electronic functions comply with EN50131-6 grades 1-4 for security applications
• On-board PSU status LED flash codes for mains failure, low or critical battery voltage, charger failure, charger OK, no batteries fitted, battery resistance fault and output over voltage

Technical specifications

• Output: 24V DC, total output current limited to 5A
• I max.a: 4.6A or 4A selectable; I max.b: 5A (charging turned off)
• Mains supply: 230V 50/60Hz, rated current 1.3A r.m.s.
• Battery charge capacity: 2.5Ah up to 17Ah (charged to 80% in 24 hours)
• Max. battery size: up to 17Ah VRLA, depending on the enclosure used
• Indicators: Supply Present (green), General Fault (amber), Auxiliary Fault (amber), Hazardous Voltages Present (red)
• Connections: mains input, supply output, battery input, fault relay, charge off input; remote thermistor via PL3
• Dimensions: 143mm (H) x 173mm (W) x 66mm (D)
• Construction: Zintec base, polycarbonate cover
• IP rating: dependent on mounting enclosure
• Weight: 665g (without batteries)
• Operating temperature: -5°C to +40°C, max. 95% relative humidity
