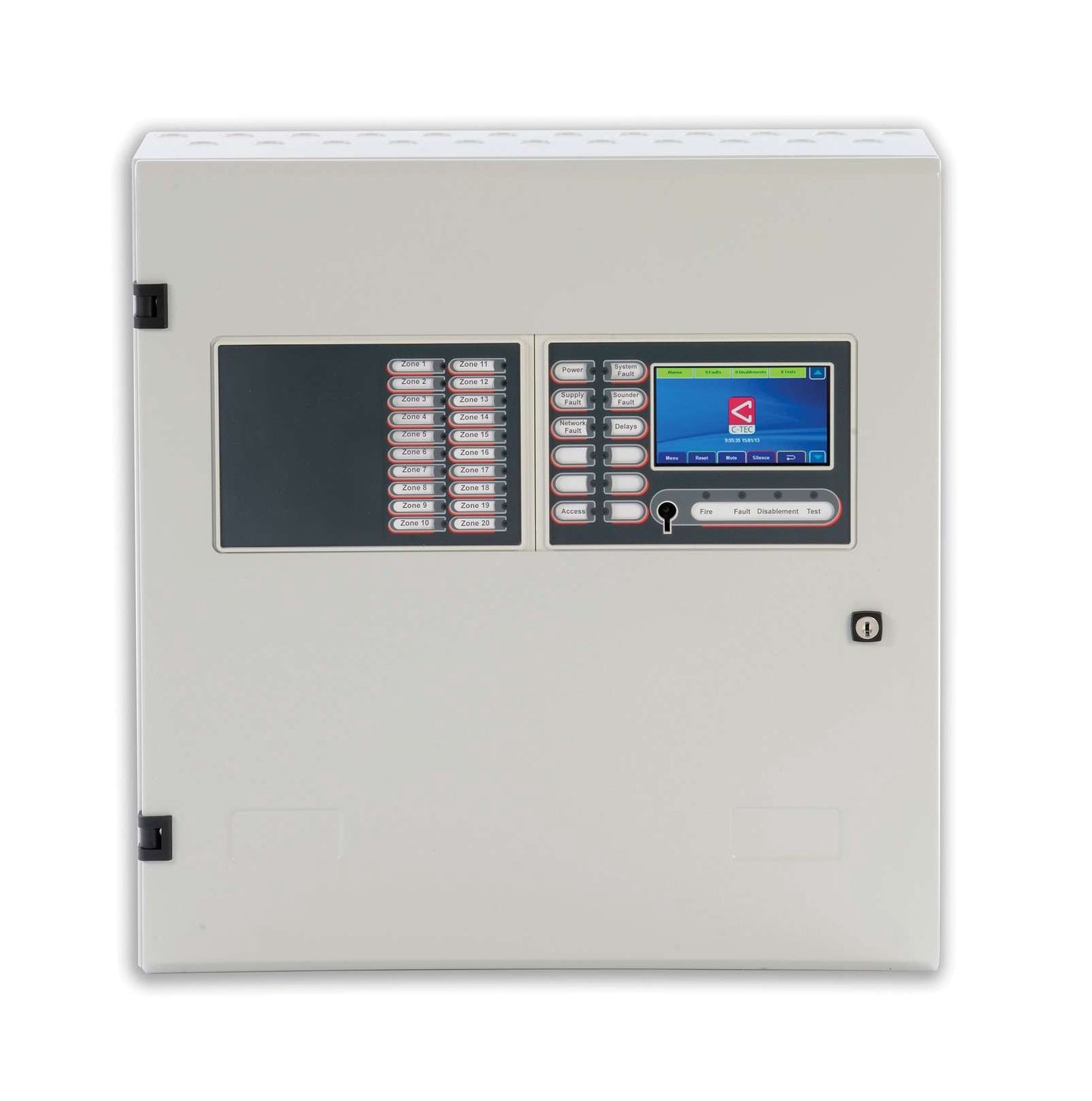

C-TEC CAST ZFP 1 Loop Addressable Fire Panel 20 Zonal LEDs Standard Cabinet

ZFP Touchscreen Controlled Addressable Fire Panel (Standard Cabinet) Touchscreen control module (Z41) 20 Programmable zonal indicators with name slots (Z44) 5A EN54-4 PSU (BF562-5/E) Order code: ZFP1/CA and derivatives A feature-rich touchscreen-controlled addressable fire panel with 1, 2 or 4 C-TEC CAST compatible loop drivers (see Key Features section for a full list of ZFP features). LPCB certified to EN54 parts 2 & 4 and Kiwa Telefication & DBI certified to EN54-13. Also certified to the relevant parts of EN54 with Swedish certification body SBSC. Multiple off-the-shelf variants or build your own panel using our ZFP module options. Rapid loop learn, flexible cause & effects and powerful system diagnostics. Hi-integrity fault-tolerant RS485 networking option allows up to 128 network nodes (64 main panels and 64 Compact Controllers). Optional ‘A-Bus’ expansion PCBs, paging and graphic interface facilities. ENVISION Enabled – fully compatible with C-TEC’s new Cloud based data management/remote access software Intuitive PC programming tools. Medium and large sized ZFPs also available with 2, 4, 6 or 8 loops.
