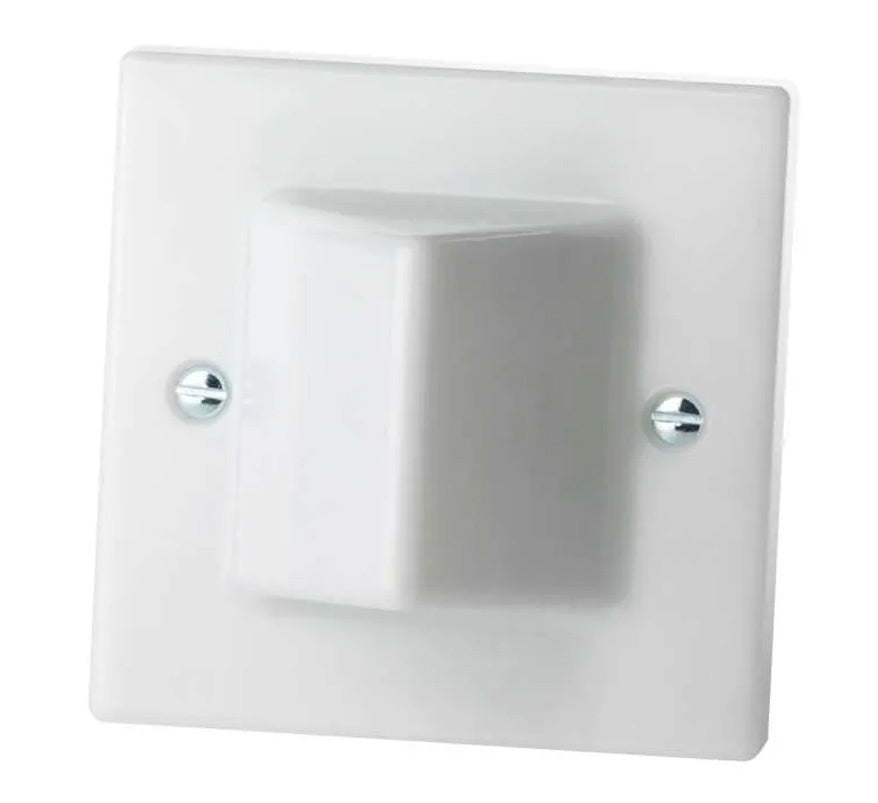

The C-TEC NC806CS is an overdoor light with sounder for C-TEC 800 Series conventional nurse call and accessible toilet alarm systems. It gives audible and visual indication of 800 Series calls outside bedrooms, WCs and any other area fitted with an 800 Series calling device. It is also part of the NC951 Accessible Toilet Alarm Kit.
Key features
- Standard calls: constant tone and constant red light
- Emergency calls: pulsing tone and pulsing red light
- Dual ultra-bright red LEDs and a triangular diffuser, highly visible from a distance
- Can also be used as an area indicator at corridor junctions or staff workstations
- Controlled by the master calling device it is connected to
- Tough, durable ABS plastic housing
- Mounts on a standard UK 25mm single gang flush or surface back box
Technical specifications
- System: C-TEC 800 Series conventional call systems
- Quiescent current: 0mA
- Connections: 1 (signal), -Ve, +Ve
- Indicators: dual red alarm LEDs
- On-board sounder: yes
- Dimensions: 87mm (W) x 87mm (H) x 68mm (D)
- Construction: plastic
- IP rating: IP41
- Weight: 52g
- Operating temperature: -5°C to +40°C, max 95% relative humidity (non-condensing)
