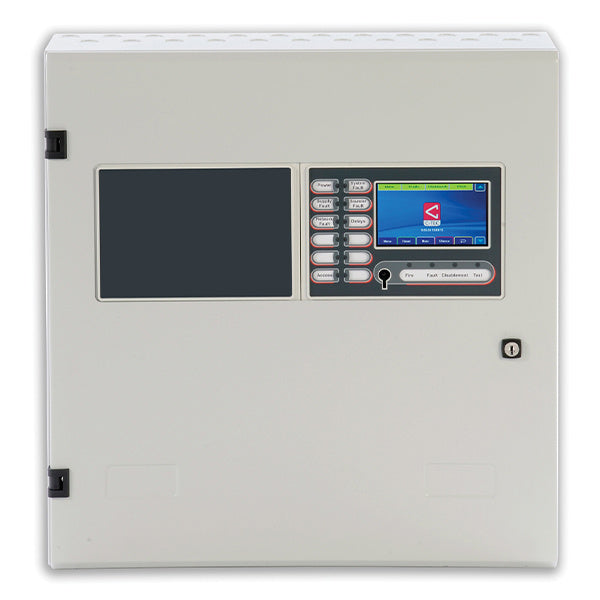

C-TEC ZFP 1 Loop Fire Panel w/ Blank Modules (Apollo Protocol) (ZFP1/X)

The C-TEC ZFP1/X is a touchscreen-controlled analogue addressable fire alarm panel in the ZFP standard cabinet, fitted with 1 Apollo XP95/Discovery compatible loop driver. It is third-party certified to EN54 parts 2 and 4. This variant is supplied with a blank module in the switch and indicator position. Medium and large ZFP cabinets with up to 8 loops are also available.

Key features

• 1 Apollo XP95/Discovery loop
• Touchscreen control module (Z41) with a full-colour 480 x 272 pixel display
• Blank module (ZBLANK) fitted in the switch and indicator position
• 5A EN54-4 power supply (BF562-5/E)
• Rapid loop learn, flexible cause and effects and system diagnostics
• Optional hi-integrity fault-tolerant RS485 network (ZHN card): up to 128 nodes (64 main panels and 64 Compact Controllers)
• RS485 'A-Bus' for up to 15 expansion PCBs (relays, inputs/outputs, sounder circuits)
• Galvanically isolated USB connection for PC programming
• Pager/DECT (RS232) and graphics interface (RS485) connections
• ENVISION enabled for C-TEC's cloud-based remote access software

Technical specifications

• Approvals: certified to EN54-2 and EN54-4 by Intertek
• Protocol: Apollo XP95/Discovery
• Loop drivers: 1
• Max loop output current: 500mA (25V min, 34V max)
• Max loop length: 1km
• Max addressable devices per loop: 126
• Mains supply: 230V 50/60Hz, 1.35A max
• Total output current: 5A at 230V AC
• Batteries: 2 x 12V VRLA in series, 7Ah min to 18Ah max
• Conventional sounder circuits: 2 x 1A (max 500m per circuit), 6800Ω EOL
• Relays: 2 programmable plus 1 fault relay, volt-free single pole changeover, max 1A at 30V DC
• Inputs: 2 programmable (connect to 0V to trigger, max 27V)
• Auxiliary output: 24V (19.5V min, 28V max), max 100mA
• Controls: touchscreen plus 1 keyswitch for Access Level 2
• Dimensions: 450 x 462 x 127mm (W x H x D); semi-flush mounting needs the ZBEZS bezel
• Construction: 1.2mm mild steel, light grey RAL7035 textured epoxy finish
• IP rating: IP30
• Operating temperature: -5°C to +40°C, max 95% relative humidity
