C-TEC ZFP 4 Loop Fire Panel w/ Blank Modules (Apollo Protocol) (ZFP4/X)

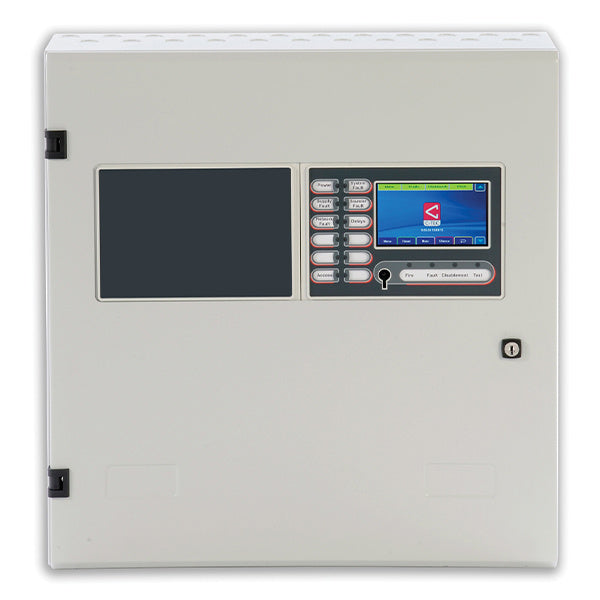

The C-TEC ZFP4/X is a touchscreen-controlled 4 loop addressable fire alarm panel in the ZFP standard cabinet, for Apollo XP95 and Discovery protocol devices. This version is fitted with a Z41 touchscreen control module, a ZBLANK blank module and a BF562-5/E 5A EN54-4 power supply, ready for zonal indicator or switch modules to be added if needed.

Key features

• Four Apollo XP95/Discovery compatible loop drivers
• Third-party certified to EN54-2 and EN54-4
• Full-colour touchscreen with menu-driven controls and a keyswitch for direct access to Access Level 2
• Rapid loop learn, flexible cause and effect programming and system diagnostics
• Optional hi-integrity fault-tolerant RS485 network (ZHN card) for up to 128 nodes: 64 main panels and 64 Compact Controllers
• Optional 'A-Bus' expansion PCBs (up to 15), paging and graphics interface
• PC programming via a galvanically isolated USB socket on the Z41 control module
• ENVISION enabled for C-TEC's cloud-based remote access software

Technical specifications

• Order code: ZFP4/X
• Approvals: certified to EN54-2 and EN54-4 by Intertek
• Protocol: Apollo XP95/Discovery
• Fitted modules: Z41 touchscreen control module, ZBLANK blank module, BF562-5/E 5A EN54-4 PSU
• Mains supply: 230V 50/60Hz, 1.35A maximum
• Internal power supply: 27V DC nominal; total output current limited to 5A @ 230V AC
• Batteries: 7Ah minimum to 2 x 12V 18Ah VRLA maximum, in series
• Loop drivers: 4; 500mA maximum loop output current (25V min; 34V max)
• Maximum loop length: 1km
• Maximum addressable devices per loop: 126
• Conventional sounder circuits: 2 x 1A (maximum 500m per circuit)
• End-of-line resistor: 6800Ω
• Relays: 2 x programmable plus 1 x fault, volt-free single pole changeover, rated 1A at 30V DC
• Inputs: 2 x programmable
• Auxiliary output: 24V aux. power, 100mA maximum
• Pager/DECT connection: RS232; graphics interface: RS485
• Display: full-colour 480 x 272 pixel touchscreen
• Dimensions: 450 W x 462 H x 127 D mm (semi-flush mounting hole 456 W x 468 H x 122 D mm, requires ZBEZS bezel)
• Construction: 1.2mm Zintec mild steel, light grey RAL7035 epoxy paint
• IP rating: IP30
• Operating temperature: -5°C to +40°C, maximum 95% relative humidity
