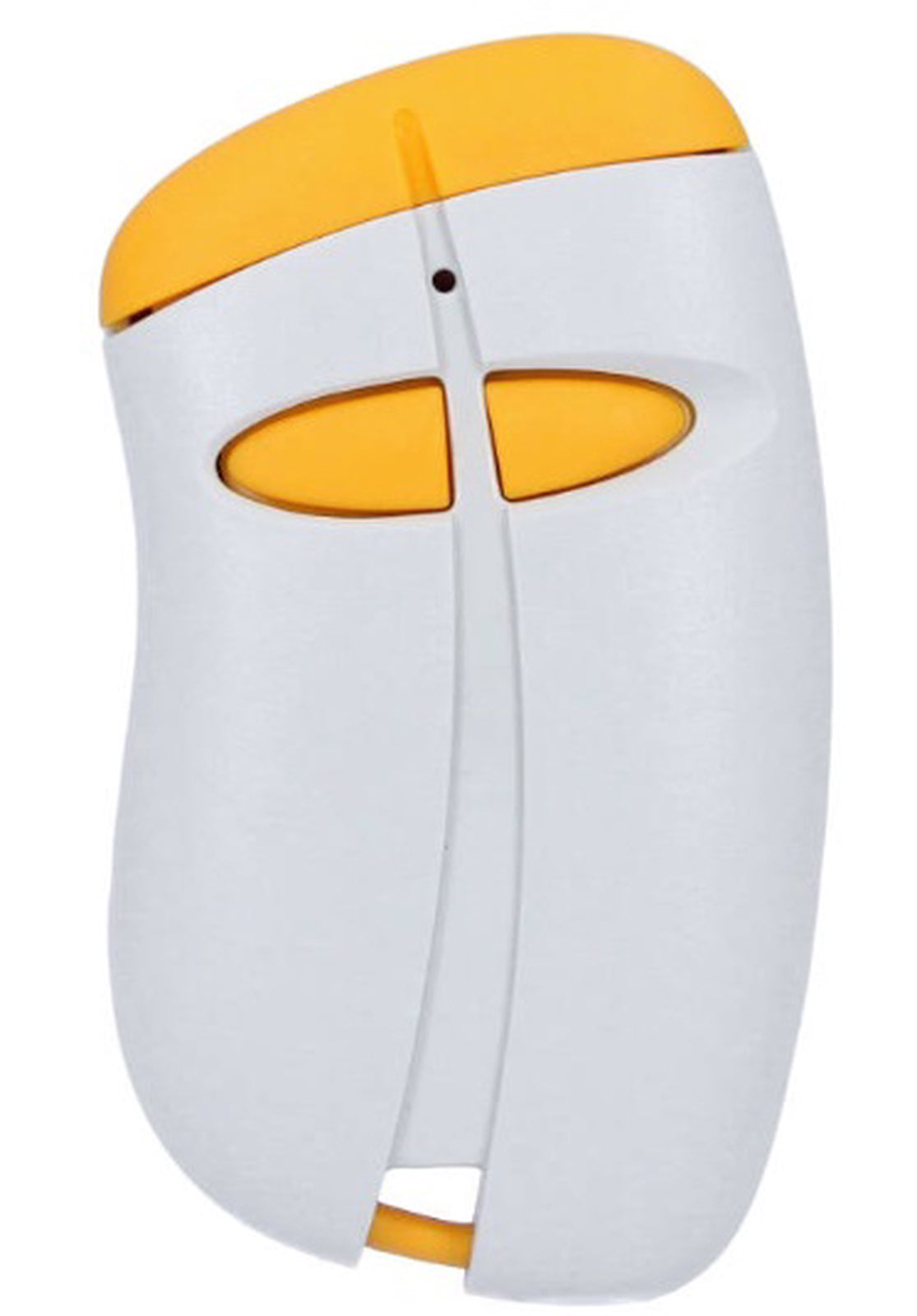

CDVI TX26-E2 2 Channel Handheld Transmitter

SKU: TX26-E2Brand: CDVI
4.6store rating from 122 reviews
Out of stock Qty Delivery
All locations0Lead time 2 to 6 weeks, estimate only
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price£21.55
25.86 inc. VAT21.55 ex VAT
Stock:
Out of stock. Lead time 2 to 6 weeks, estimate only
Delivery
Out of stock
Lead time 2 to 6 weeks, estimate only
Collect in Poole
Not stocked in Poole
Delivery only
CDVI TX26-E2 2 Channel Handheld Transmitter £21.55
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • 2 channel handheld transmitter
  • For automatic doors, gates and lights
  • KeeLoq® hopping code protects against interception
  • Up to 250m range in open field
  • Works with all CDVI 433.92MHz receivers
  • Optional wall holder available (SESMT03)

Frequently bought together

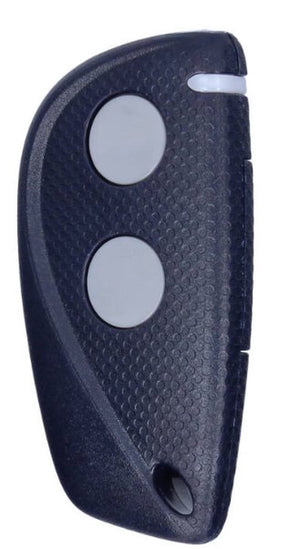

CDVI TX26-T2 2 Channel Handheld Transmitter

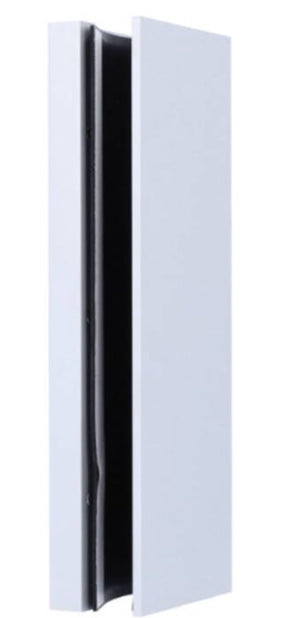

CDVI U Bracket for Electro-Magnet Armature Plates

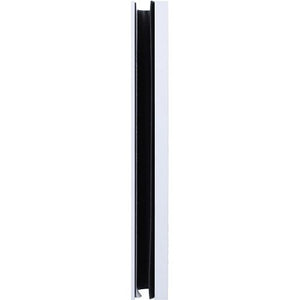

CDVI UBK-P U-Bracket for Magnetic and Electric LockingCDVI UBK-P U-Bracket for Magnetic and Electric Locking
CDVI Universal Fixing Kit for 300kg to 500kg Maglocks

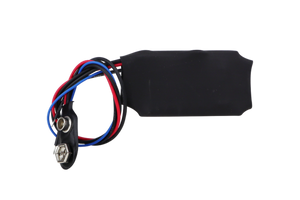

CDVI Universal Single Channel Radio Transmitter

Product details

The CDVI TX26-E2 is a 2 button handheld remote control transmitter for opening automatic doors and gates and switching lights. With two channels, one button can open a car park gate and the other a garage door. It works with all CDVI 433.92MHz receivers, and transmissions are protected by KeeLoq® hopping code to stop them being copied.

Key features

  • 2 channel handheld transmitter
  • For automatic doors, gates and lights
  • KeeLoq® hopping code protects against interception
  • Up to 250m range in open field
  • Works with all CDVI 433.92MHz receivers
  • Optional wall holder available (SESMT03)

Technical specifications

  • Product code: TX26-E2 (CDVI ref. F0204000017)
  • Frequency: 433.92MHz
  • Modulation: AM/ASK
  • Coding: KeeLoq® hopping code
  • Channels: 2
  • Range: up to 250m in open field
  • Battery: 12V (included)
  • Current consumption: 15mA
  • Operating temperature: -10°C to +55°C
  • Protection: IP2X
  • Dimensions: 81mm (H) x 46mm (W) x 16mm (D)
  • Weight: 30g
  • Material: polycarbonate
  • Colour: white/orange

Datasheets & documents

CDVI TX26-E2 datasheet (PDF)
