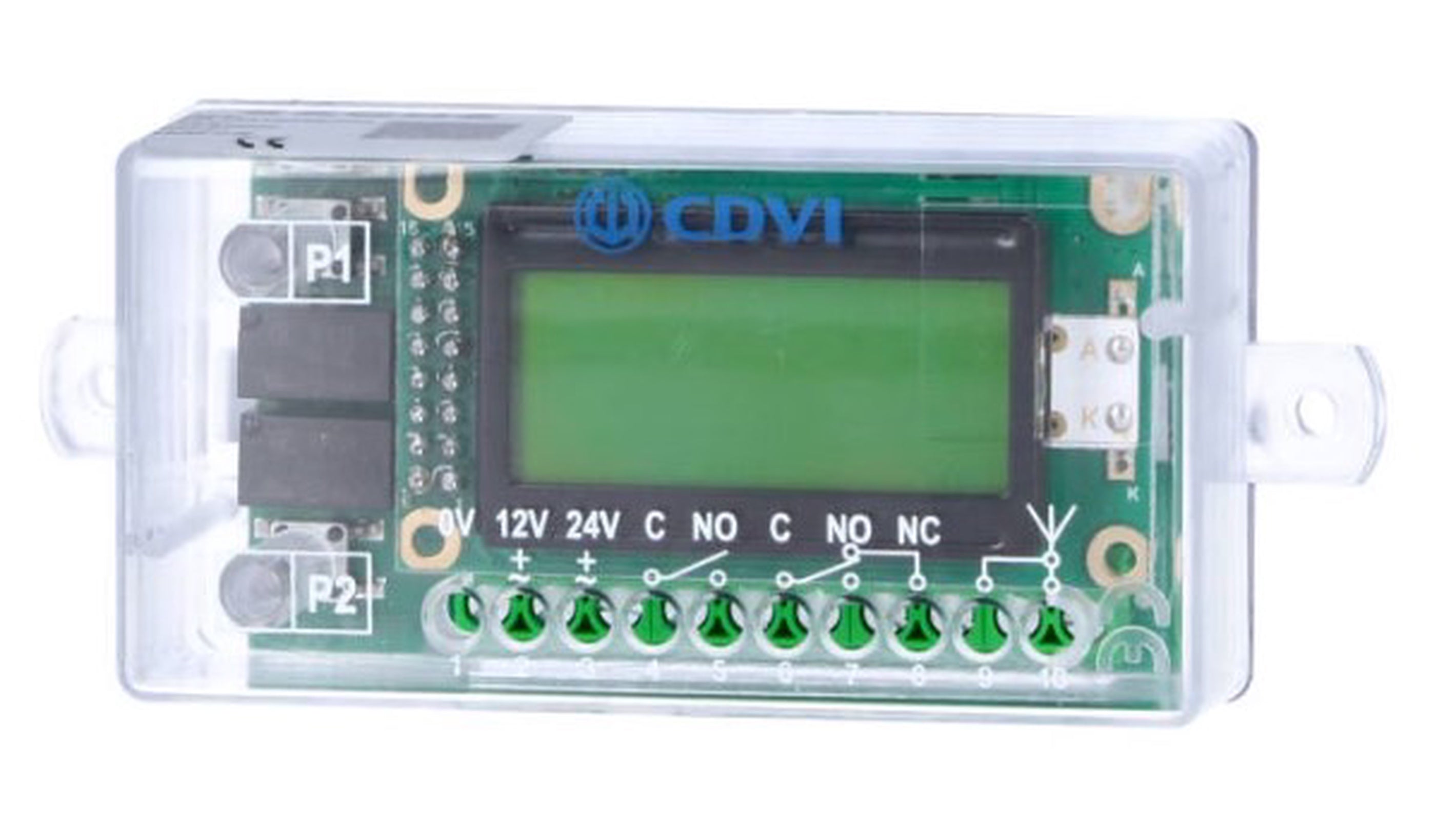

CDVI RX26-XPL 2 Relay Standard Receiver with LCD Display

SKU: RX26-XPLBrand: CDVI
5.01 review
Out of stock Qty Delivery
All locations0Lead time 2 to 6 weeks, estimate only
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price$83.00
99.60 inc. VAT83.00 ex VAT
Stock:
Out of stock. Lead time 2 to 6 weeks, estimate only
Delivery
Out of stock
Lead time 2 to 6 weeks, estimate only
Collect in Poole
Not stocked in Poole
Delivery only
CDVI RX26-XPL 2 Relay Standard Receiver with LCD Display $83.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • Two relay standard receiver
  • Memory for up to 100 transmitter buttons
  • Backlit LCD screen with two push buttons for programming
  • KeeLoq® hopping code
  • Data backup to an external MEM-XPL memory device (sold separately)
  • Transparent polycarbonate housing

Frequently bought together

CDVI 2EASY 2-Wire 1 Button Door Station Slimline Stainless Steel
CDVI 2EASY 2-Wire 7" Standard Internal Monitor Black
CDVI 2EASY 2-Wire Power/Bus Combiner Module

Product details

The CDVI RX26-XPL is a two relay radio receiver for CDVI 433.92MHz handheld transmitters, used to control automatic doors, gates and lights. A backlit LCD screen and two push buttons make set up quick, with menus shown on the screen, and it stores up to 100 transmitter buttons. The internal data can be backed up to an external MEM-XPL memory device to restore a site or copy the setup to a new receiver.

Key features

  • Two relay standard receiver
  • Memory for up to 100 transmitter buttons
  • Backlit LCD screen with two push buttons for programming
  • KeeLoq® hopping code
  • Data backup to an external MEM-XPL memory device (sold separately)
  • Transparent polycarbonate housing
  • Ideal for automatic doors, gates and lights

Technical specifications

  • Product code: RX26-XPL
  • Frequency: 433.92MHz, AM/ASK modulation
  • Coding: KeeLoq® hopping code
  • Memory: 100 transmitter channels
  • Relays: 1 x NO and 1 x NO/NC
  • Relay contact rating: 24VA, 60V max
  • Supply voltage: 12 to 24V AC or DC
  • Current consumption: 90mA at 12V DC
  • Operating temperature: -20°C to +70°C
  • Protection: IP30
  • Housing: transparent polycarbonate
  • Dimensions: 105mm (H) x 45mm (W) x 28mm (D)
  • Weight: 80g

Note: works with CDVI 433.92MHz transmitters such as the TX26 range.
