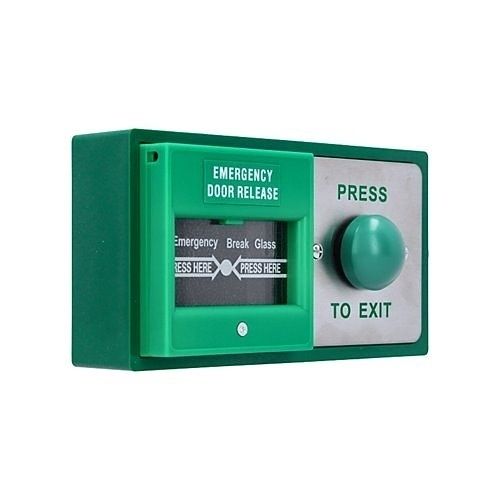

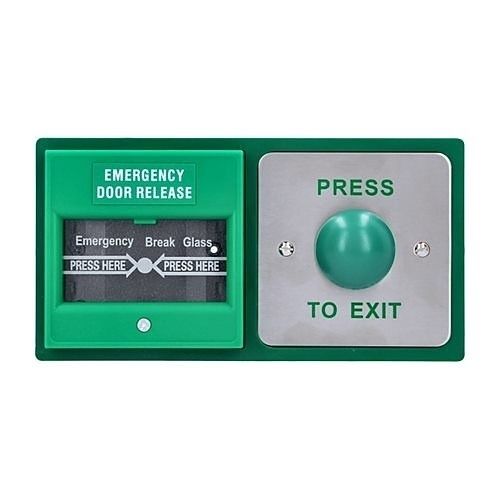

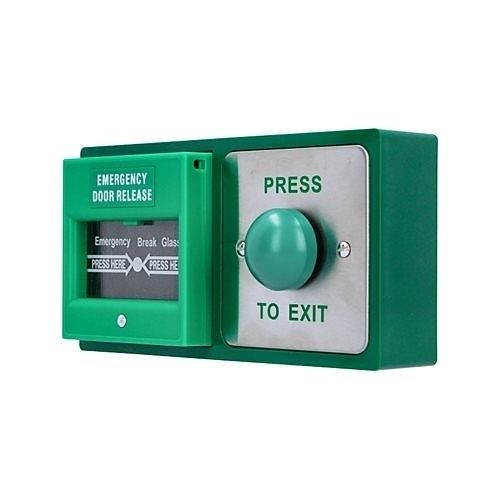

A new range of combined exit button and emergency door release products, to provide a convenient method of unlocking an electronic lock when exit is required or in the event of an emergency.

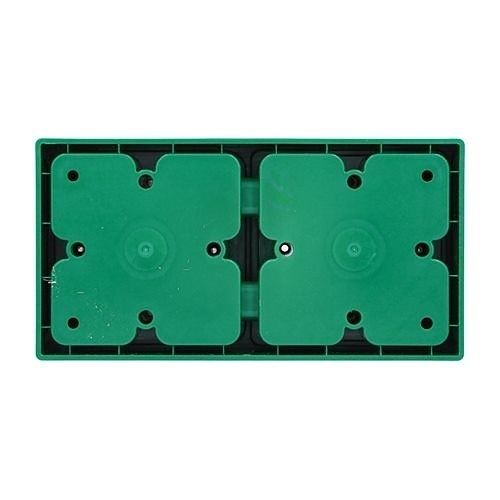

These combined units are supplied in a purpose made double gang surface back box, which means the unit can be installed quickly without fuss and ensures an exact fit for a much tidier installation.
The exit button options are standard stainless steel or high impact green dome. The green dome is particularly suited for users who require a larger "target" button - in homes for the elderly, for example.
The EDR's are supplied double pole as standard, and available as traditional break-glass or resettable.
Main Features
Double-gang back-box with RTE and emergency door release
Robust stainless steel faceplate
Green dome button provides a large and easy target - useful in care homes
Traditional breakglass emergency switch
Surface mount as standard for neat & tidy installations
Specifications
Application/Usage
College; Commercial; Public Building; School
Depth
57.00mm
Environmental Certification
CE; RoHS
Environmentally Friendly
Yes
Features
Double Pole Contact; Resettable Insert Plate
Finishing
Polycarbonate; Stainless Steel
Gang Type
Double Gang
Height
98.00mm
Indoor/Outdoor
Indoor
Limited Warranty
2-Year
Material
Stainless Steel
Mount Type
Surface Mount
Package Contents
Domed Exit Button and Break-Glass Emergency door release
