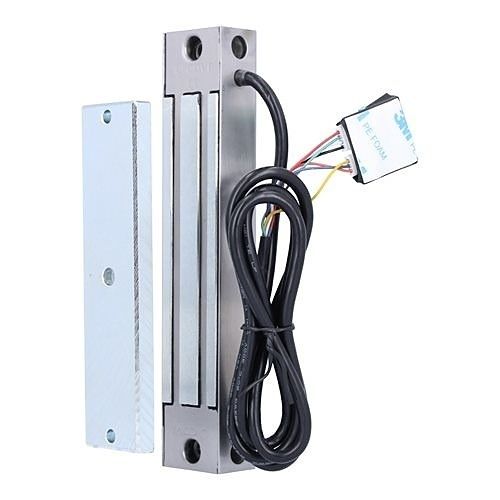

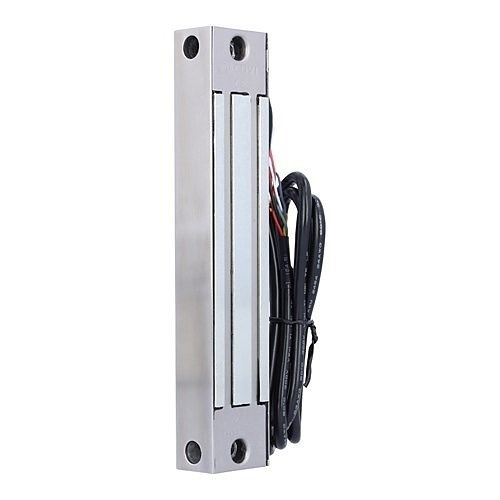

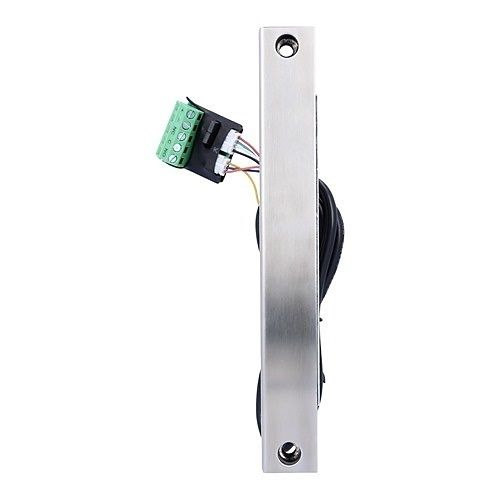

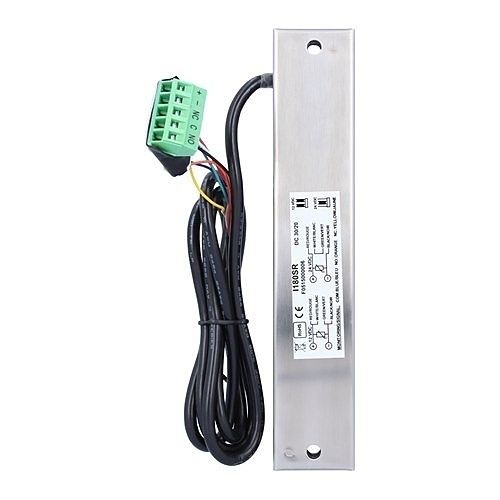

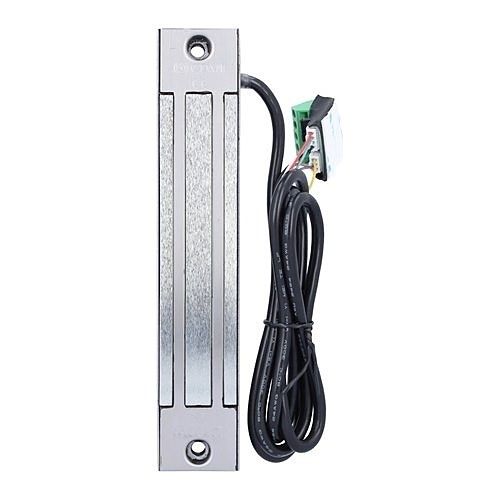

CDVI I180SR/ES180 Magnet Surface External 180kg
£118.75
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 180kg holding force
- Monitored surface mount maglock
- Stainless steel construction
- For use in harsh environments
- 12-24Vdc
Frequently bought together
CDVI
CDVI RTE-IRS Infrared Exit Device Square with EXIT Logo Surface Mount
Sale price£28.65
In stock
CDVI
CDVI Infrared Photocell Vandal Resistant 10m Range
Sale price£82.10
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
CDVI
CDVI Infrared Safety Sensor for Door Automation
Sale price£415.95
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
CDVI
CDVI Interconnecting Cable for Double Door Automation
Sale price£19.90
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
The external range of electromagnetic locks from CDVI offers high performance locking in the most harsh environments. Manufactured in high quality stainless steel, fully sealed and with monitored as standard on most models, this range offers a flexible locking solution.
The range includes surface and mortice models, with various holding forces, to accommodate your locking requirements. The I400SR & I500SR also include a 20mm internally threaded gland for connection of conduit to ensure cable integrity.
Cased in high-grade stainless steel, with a unique cover plate, all models are supplied with full fixing kits. A range of powder-coated steel brackets are available if required.
Main Features
- 180kg holding force
- Monitored surface mount maglock
- Stainless steel construction
- For use in harsh environments
- 12-24Vdc
Specifications
| Application/Usage | Access Control System; Commercial; Door; Gate; Industrial; Outdoor; Public Building; Wooden Door |
|---|---|
| Depth | 22.00mm |
| Door Supported | Double Door; Single Door |
| Environmental Certification | Yes |
| Features | Fail safe; Monitored; Vandal Resistant; Weather Resistant |
| Finishing | Stainless Steel |
| Form Factor | Surface Mount |
| Height | 175.00mm |
| Holding Force | 180.00kg |
| Indoor/Outdoor | Outdoor |
| Ingress Protection Rating | IP68 |
| Input Voltage | 12V DC; 24V DC |
| Length | 32.50mm |
| Limited Warranty | 10-Year |
| Material | Stainless Steel |
| Mount Type | Surface Mount |
| Package Contents |
|
| Packaged Quantity | 1 |
| Product Series | I SERIES |
| Product Type | Magnetic Lock |
| Security Configuration | Fail Safe |
| Width | 32.50mm |
| Colour | Silver |
| Input Current | 275mA |
| Manufacturer | CDVI Group |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Datasheet
CDVI I180SR/ES180 Magnet Surface External 180kg Need the datasheet? Our team will email it to you. Request datasheet
