| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 16 | 2 to 3 working days |

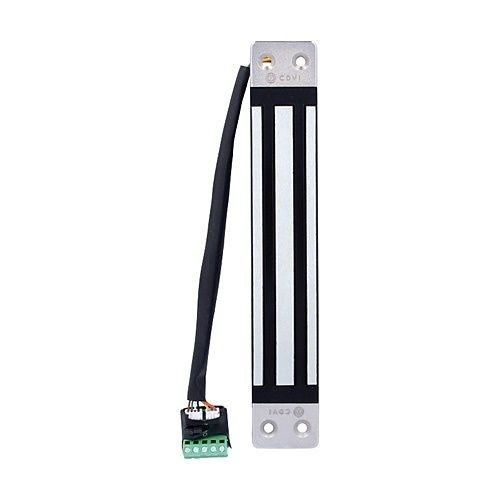

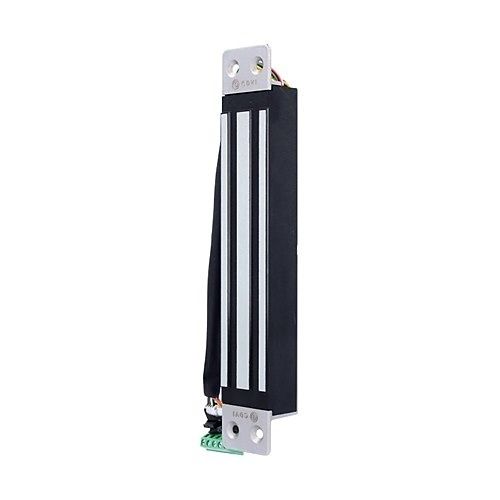

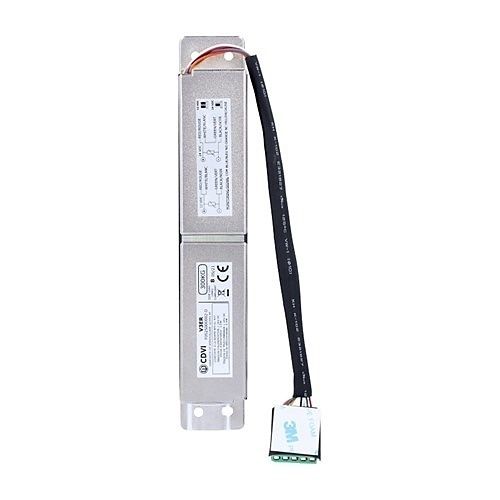

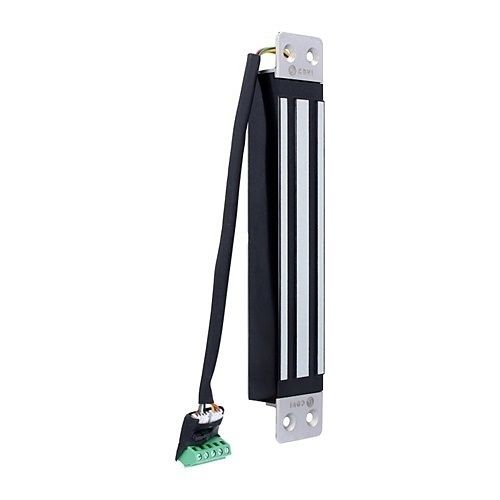

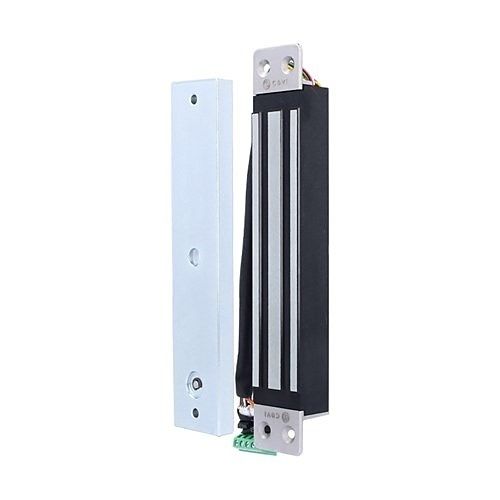

CDVI M300M Magnet Mini Transom 12/24vdc Monitored
£86.85
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Mortice mount electro-magnetic lock
- Up to 300kg holding force for robust security
- 12 or 24V DC operation
- Live status monitoring
- No moving parts
- Great for swing or sliding doors - usually mounted into the transom
Frequently bought together
CDVI
CDVI Microswitch Push Bar 850mm
Sale price£146.30
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
CDVI
CDVI Mini Proximity Reader Black
Sale price£69.15
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
CDVI
CDVI SHL1200 Mortice Shearlock Maglock 1200kg
Sale price£247.20
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
The V3ER is a popular flush-mounted suction cup for indoor use with a holding force of 300 kg and a return contact. Thanks to its multi-fixed properties and narrow profile, it is suitable for a wide range of applications, including installation on sliding doors or transverse installation on swing doors. It is powered by 12 or 24 VDC as required, and is equipped with a door position contact.
Main Features
- Mortice mount electro-magnetic lock
- Up to 300kg holding force for robust security
- 12 or 24V DC operation
- Live status monitoring
- No moving parts
- Great for swing or sliding doors - usually mounted into the transom
Specifications
| Application/Usage | Access Control System; Commercial; Door; Industrial; Public Building; Wooden Door |
|---|---|
| Depth | 27.0mm |
| Door Supported | Single Door |
| Environmentally Friendly | Yes |
| Features | Vandal Resistant; Weather Resistant |
| Finishing | Aluminum |
| Form Factor | Flush Mount |
| Height | 228.0mm |
| Holding Force | 300kg |
| Indoor/Outdoor | Indoor |
| Ingress Protection Rating | IP54 |
| Input Voltage | 12V DC; 24V DC |
| Limited Warranty | 5-Year |
| Material | Aluminium |
| Mount Type | Door Mount |
| Packaged Quantity | 1 |
| Power Consumption | 3W |
| Product Series | V SERIES |
| Product Type | Magnetic Lock |
| Security Configuration | Fail Safe |
| Width | 39.0mm |
| CE Marking | Yes |
| Colour | Silver |
| Input Current | 225mA |
| Manufacturer | CDVI Group |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Datasheet
CDVI M300M Magnet Mini Transom 12/24vdc Monitored Need the datasheet? Our team will email it to you. Request datasheet
CDVI M300M Magnet Mini Transom 12/24vdc Monitored
£86.85
