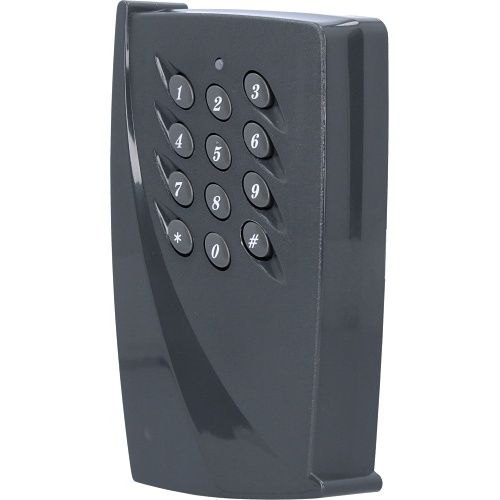

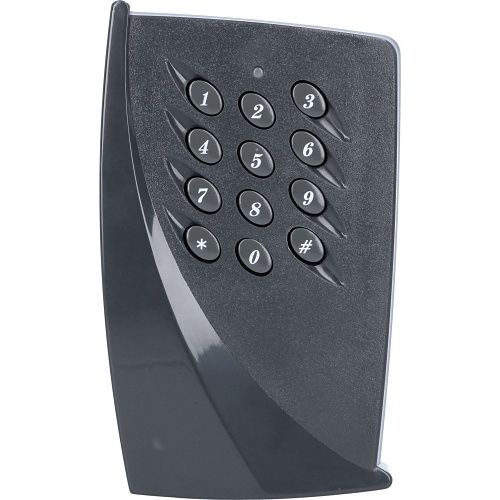

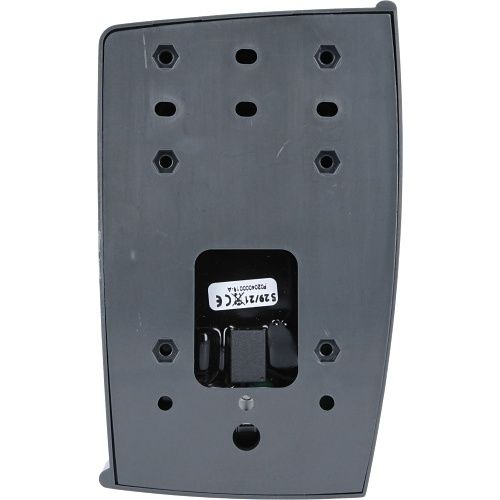

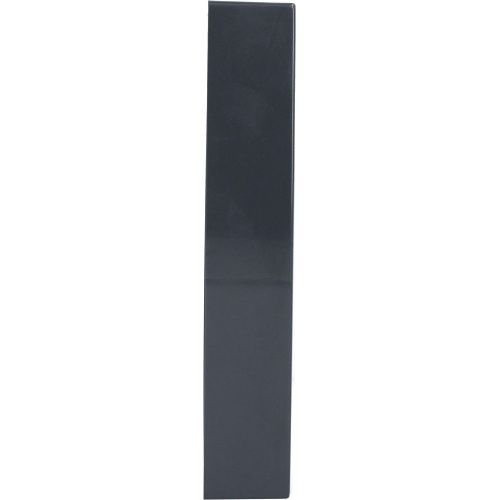

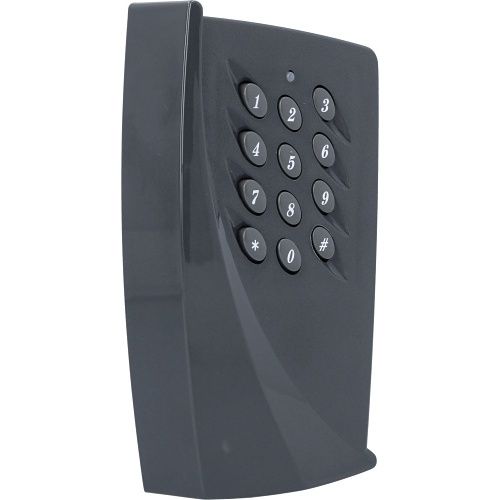

CDVI PROMI-ECO Surface Mount polycarbonate Keypad with self-contained electronics
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 1 | 2 to 3 working days |
- Cost-effective, reliable keypad for simple access control projects
- Constructed in sturdy polycarbonate
- Up to 100 user codes
- Compact design with low-rise surface mount
- PIN-protected programming mode
- PIN protected programming
Frequently bought together
Product details
The PROMI ECO from CDVI offers a good value, entry level keypad ideally suited for securing non-harsh environments where a simplified control of access is required.
Manufactured in sturdy polycarbonate, the keypad offers 100 user codes - the adding and deleting of codes, along with door release time etc, is carried out at the keypad via a master programming code.
A timed relay takes care of all forms of locking device, and an exit button input completes the product to provide access control for a single door.
The unit operates at 12V ac or dc, consuming 20mA in standby and 80mA when active.
Programming of the unit is very simple. A master code is entered which allows access to the programming menu - from there, codes can be added or deleted, code lengths can be determined (3-8 digits in length) and the lock relay can be set as timed between 1 and 99 seconds or as latched (toggle between on & off).
Programming is also assisted with visual and audible feedback.
- Cost-effective, reliable keypad for simple access control projects
- Constructed in sturdy polycarbonate
- Up to 100 user codes
- Compact design with low-rise surface mount
- PIN-protected programming mode
- PIN protected programming
- Internal or external use
- Exit button input
- Simple surface mount
- 2-year warranty
Specifications
| Application/Usage | Access Control System; Commercial; Public Building; Small business |
|---|---|
| Depth | 28.00mm |
| Environmental Certification | CE; RoHS; WEEE |
| Environmentally Friendly | Yes |
| Height | 145.00mm |
| Identification Method | PIN/Passcode |
| Indoor/Outdoor | Indoor; Outdoor |
| Input Voltage | 12V DC |
| Limited Warranty | 5-Year |
| Mount Type | Surface Mount |
| Number of Doors | 1 |
| Number of Users | 100 |
| Packaged Quantity | 1 |
| Product Type | Keypad |
| Weight | 0.20kg |
| Width | 80.00mm |
| CE Marking | Yes |
| Colour | Silver |
| Manufacturer | CDVI |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
CDVI PROMI-ECO Surface Mount polycarbonate Keypad with self-contained electronics Product datasheet · PROMI-ECO · PDF Open datasheet
