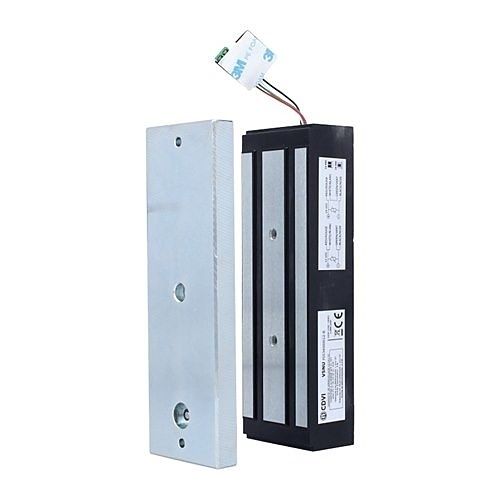

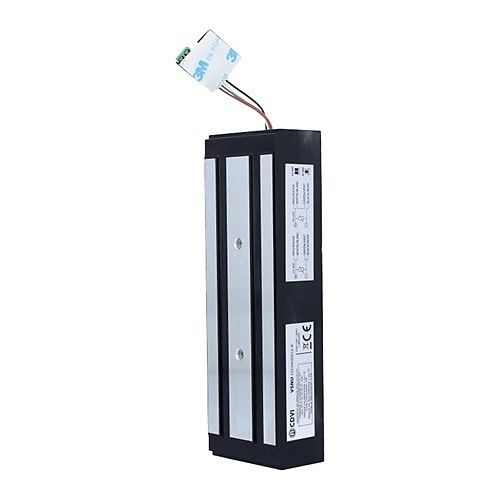

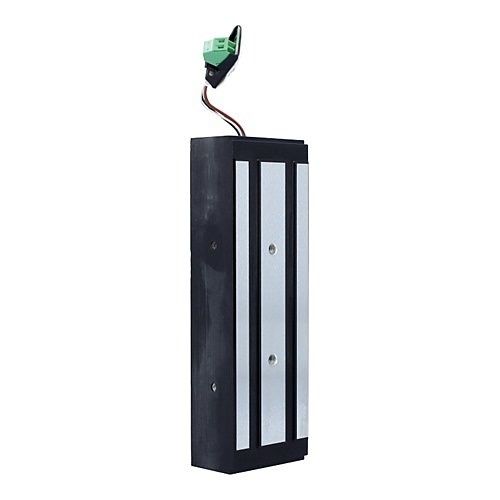

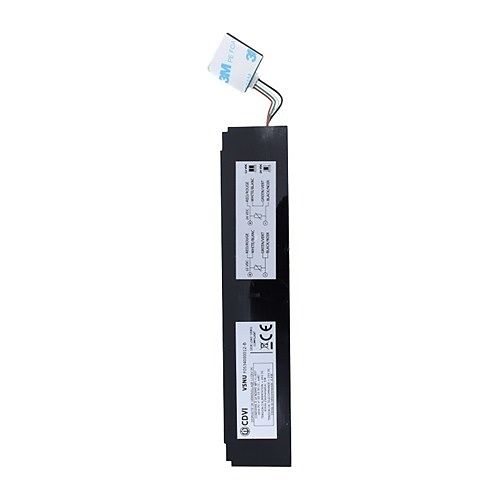

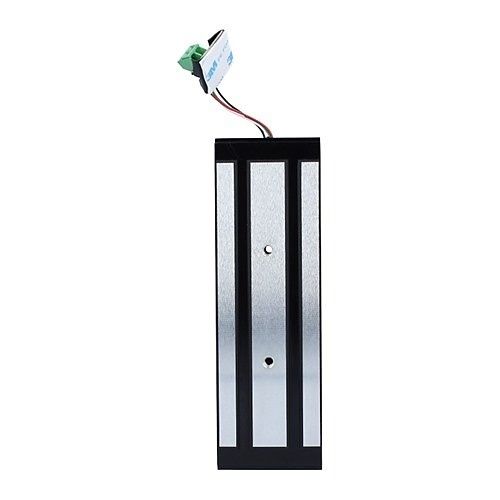

CDVI V5NU Mortice Electro-Magnetic Lock for AH5 Transom Housings Range, 500 kg
SKU: V5NUBrand: CDVI
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 1 | 2 to 3 working days |
CDVI V5NU Mortice Electro-Magnetic Lock for AH5 Transom Housings Range, 500 kg
£121.80
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 500kg mortice electro-magnetic lock
- Fits AH5 series architectural transom housings
- Fitted with MOV to eliminate back-EMF
- architectural transom housings
- Fitted with MOV to eliminate back-EMF
Frequently bought together
CDVI
CDVI Wall Holder for TX26-E Series Transmitters
Sale price£3.55
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
CDVI
CDVI Weathershield for DWSSS-5M1 Infrared Sensor
Sale price£65.90
Pre-Order (Not in Stock)
- Estimated Lead Time: 2-6 Weeks.
Product details
The V5NU is a mortice electro-magnetic lock used with the AH5 transom housing range. A varistor is built into the electronics, which eliminates back-EMF and protects sensitive controlling devices such as keypads and access control units.
Main Features
- 500kg mortice electro-magnetic lock
- Fits AH5 series architectural transom housings
- Fitted with MOV to eliminate back-EMF
- architectural transom housings
- Fitted with MOV to eliminate back-EMF
Specifications
| Application/Usage | Access Control System; Commercial; Door; Industrial; Public Building; Wooden Door |
|---|---|
| Depth | 38.0mm |
| Door Supported | Single Door |
| Environmentally Friendly | Yes |
| Features | Fail safe |
| Finishing | Aluminium |
| Form Factor | Internal |
| Height | 190.0mm |
| Holding Force | 500kg |
| Indoor/Outdoor | Indoor |
| Ingress Protection Rating | IP54 |
| Input Voltage | 12V DC; 24V DC |
| Limited Warranty | 2-Year |
| Material | Aluminium |
| Mount Type | Door Mount |
| Package Contents |
|
| Packaged Quantity | 1 |
| Power Consumption | 3W |
| Product Series | V SERIES |
| Product Type | Magnetic Lock |
| Security Configuration | Fail Safe |
| Width | 60.0mm |
| Colour | Silver |
| Input Current | 270mA |
| Manufacturer | CDVI Group |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
CDVI V5NU Mortice Electro-Magnetic Lock for AH5 Transom Housings Range, 500 kg Product datasheet · V5NU · PDF Open datasheet
