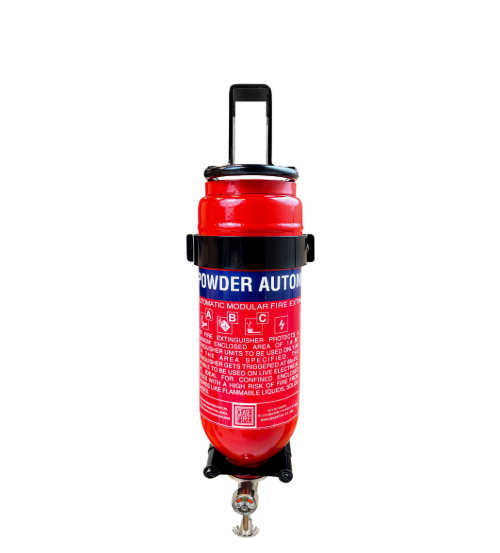

Ceasefire Automatic Wall Mounted MS Stored Pressure RED with Thermal Bulb of 79C (CF-001401)

The Ceasefire CF-001401 is a 1kg wall mounted automatic fire extinguisher filled with ABC dry powder (MAP50), in a red mild steel cylinder mounted in the inverted position. It is designed for spaces that are prone to fire but short on room, where a portable extinguisher is hard to place. When the temperature around the unit rises, the 79°C quartzoid bulb in the discharge head breaks and the powder is released automatically, even when nobody is present, so the fire is brought under control early.

Key features

• Fully automatic thermal actuation via a quartzoid bulb
• ABC dry powder for Class A, B, C and electrically started fires
• Magnetic Bourdon tube pressure gauge
• Supplied with a mounting bracket for direct wall installation
• Optional flexible mounting bracket for targeted positioning
• Helium leak tested
• 5 year manufacturer's warranty

Technical specifications

• Product code: CF-001401
• Agent: ABC dry powder MAP50, stored pressure
• Capacity: 1kg
• Coverage area: 1.6m²
• Actuation temperature: 79°C ±4°C
• Minimum discharge time: 1 second
• Discharge fitting: Direct nozzle with quartzoid bulb
• Filled weight: Approx. 1.8kg
• Shell diameter: 86.5mm
• Height: Approx. 330mm
• Cylinder: Steel CR2 (DC01), minimum wall thickness 1.6mm, red RAL 3000
• Service pressure: 15 bar
• Test pressure: 30 bar
• Certification: PED, UKCA-PED, CE marked
